Center Air Vent

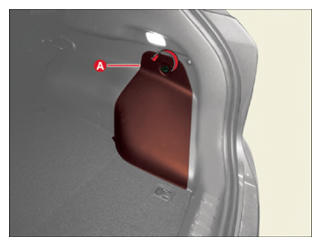

1. Remove the upper battery cover (A) after rotating valve in the direction of the arrow.

   Courtesy of KIA MOTORS AMERICA, INC.

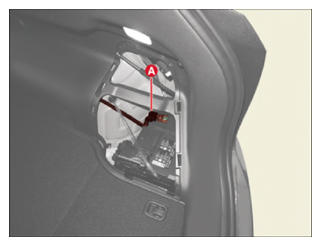

2. Disconnect the auxiliary 12 V negative (-) battery terminal (A) after loosening the nut.

   Tightening torque  :

   7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

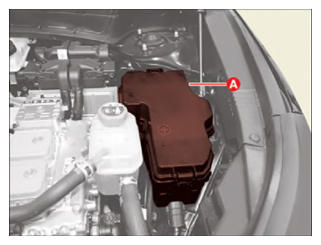

3. Remove the engine room junction box cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

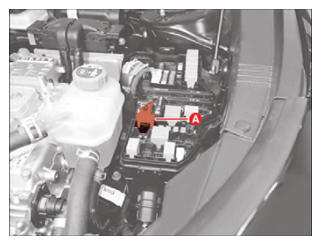

4. Disconnect the service interlock connector (A).
   WARNING: Wait more than 3 minutes for capacitor in the inverter to be discharged completely after disconnecting the high voltage service interlock connector.

   Courtesy of KIA MOTORS AMERICA, INC.

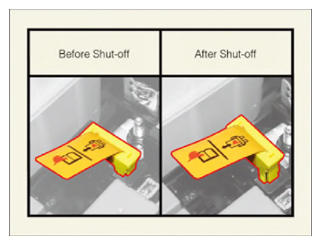

   NOTE: The high voltage service interlock connector cannot be completely removed.

   Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

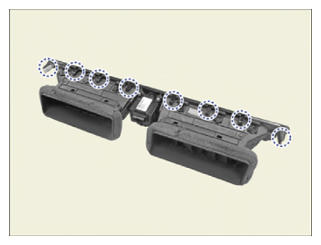

Clip position:  Dotted circles
