Inspection Procedure

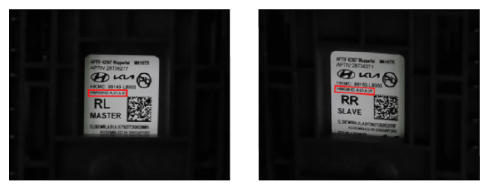

  1. Check for software version on the RL_C_RDR and RR_C_RDR label. (Fig.1 below)
    G15801288Courtesy of KIA MOTORS AMERICA, INC.

    Good

    • Carefully re-do troubleshooting steps.
    • If no problems were found with the circuits or connectors, replace the RL_C_RDR or RR_C_RDR and go to "VERIFICATION OF REPAIR " procedure.
    • In case of RL_C_RDR or RR_C_RDR is replaced, "Radar Calibration" must be performed.

    No Good
