Repair Procedures: Replacement
CAUTION:
Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front door scuff trim.
(Refer to " [Front door scuff trim] ")
- Remove the hood latch release handle.
(Refer to " Replacement ")
- Carefully remove the front door body side weatherstrip.

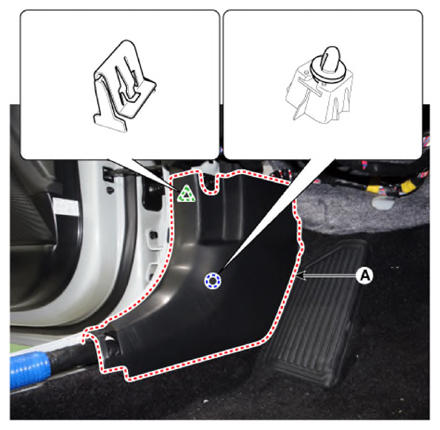

- Using a screwdriver or remover, remove the cowl side trim (A).
- Install in the reverse order of removal.
Information
Replace any damaged clips (or pin-type retainers).
