[Steering column shroud upper panel]

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Lower the steering wheel.

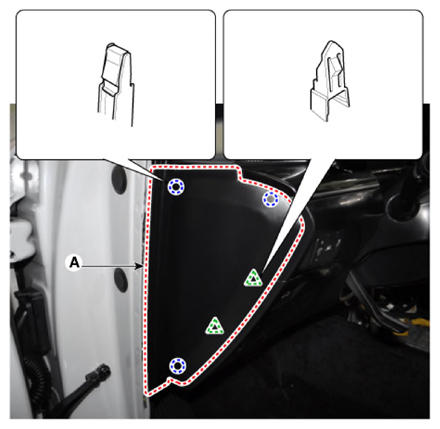

Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

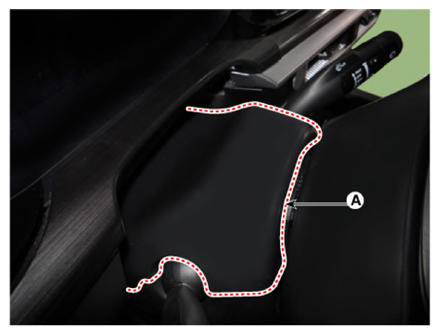

Using a screwdriver or remover, remove the steering column shroud upper panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

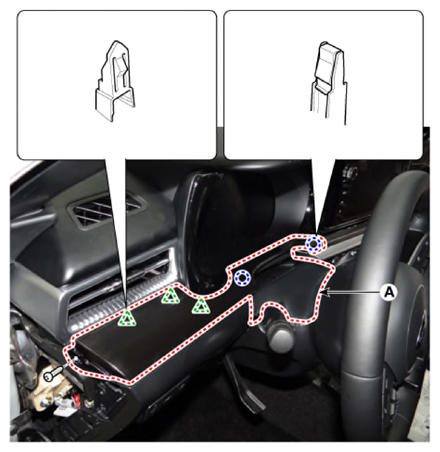

After loosening the mounting screw, remove the crash pad garnish [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
