[Steering column shroud lower panel]

  1. Remove the crash pad lower panel.

    (Refer to " Replacement  ")

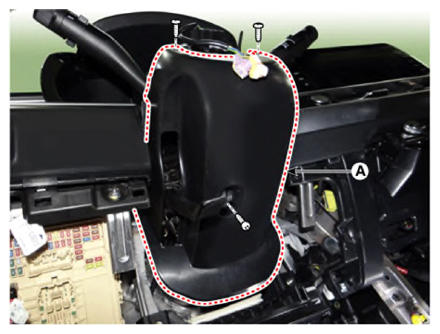

  2. Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
    G13835550Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse removal procedure.

    Information

    Replace any damaged clips (or pin-type retainers).
