WHEEL AND TIRE (2WD / 70kW+160kW AWD): Tire: Removal

1. Remove the wheels and tires.

   (Refer to Tires/Wheels -  "WHEEL ")

2. Deflate the tires.

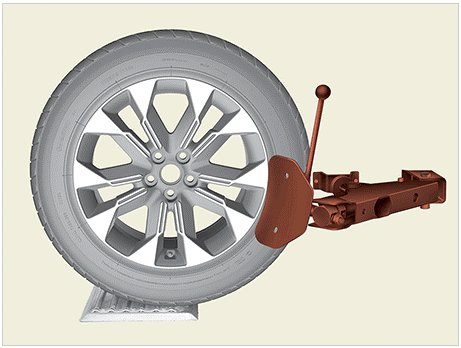

3. Remove the tire from the wheel using the tire replacing equipment.

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • Make sure the bead breaker is sufficiently separated from the TPMS sensor.
   • Remove the bead at away 90°, 180°, and 270° from the valve.

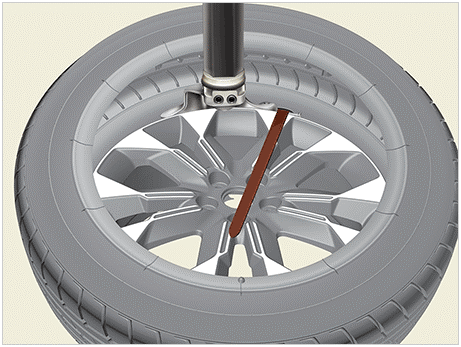

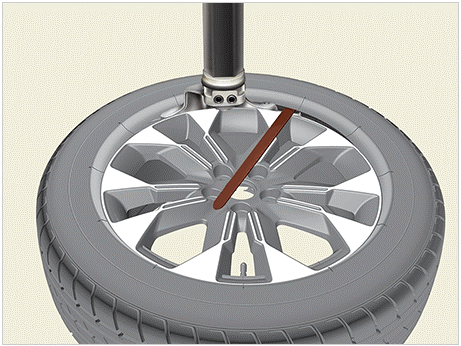

4. Remove the tire by levering it and rotating the wheel clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

• Set the TPMS sensor at 12 o'clock from the head of the tire changer.
• When lifting the bead with the lever, make sure that the sensor is not impacted.
