[Rear Stabilizer Bar]

Remove the rear motor and reduction gear assembly.
(Refer to Motor and Reduction Gear System - " REAR MOTOR AND REDUCTION GEAR ASSEMBLY ")

Information

Perform only steps 1 - 19, and then follow the next steps to removing the rear stabilizer bar.

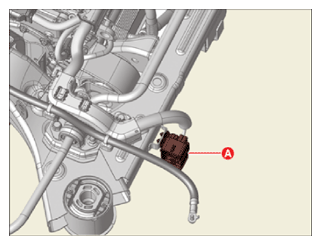

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

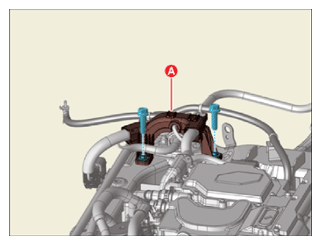

Separate the high-voltage cable wiring (A) after removing the bolts.
Tightening torque:

16.7 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

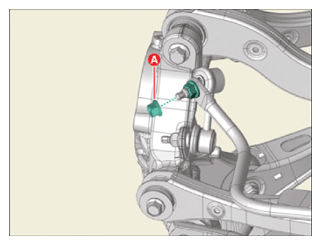

Remove the rear stabilizer bar link nut (A).

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G15814566

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

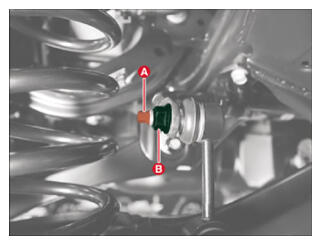

Hold the rear stabilizer bar link outer hex (A), and then remove or install the nut (B).

G15814567

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to damage the boot of the link.
Use a hand tool when removing or installing the rear stabilizer bar link nut.

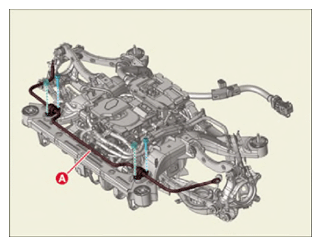

Remove the rear stabilizer bar (A) after removing the bolts and nuts.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
