Removal And Installation: Removal
- Remove the rear wheel and tires.
(Refer to Tires/Wheels - " WHEEL ")

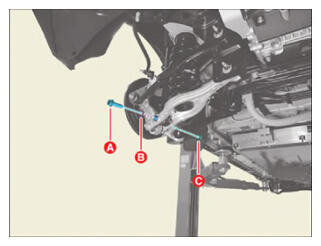

- Remove the rear shock absorber lower bolt (A), washer (B), and nut (C).
Tightening torque:
176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb.ft)
WARNING: If a transmission jack is used with a two-post lift, do not lift the vehicle too much. The center gravity of the vehicle may change and fall.NOTE:- Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.
- Mark and remove all bolts and nuts to prevent incorrectly positioned installation.

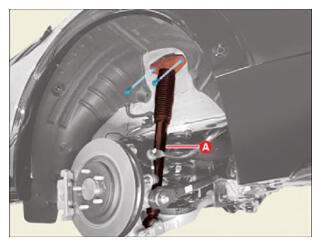

- Remove the rear shock absorber (A) after removing the bolts.
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
Information
Hold the bolt and remove or install the nut.
