Removal And Installation: Removal
- Remove the rear under cover.
(Refer to Motor and Reduction Gear System - " REAR UNDER COVER ")
- Remove the rear coil spring.
(Refer to Rear Suspension System - "REAR COIL SPRING ")

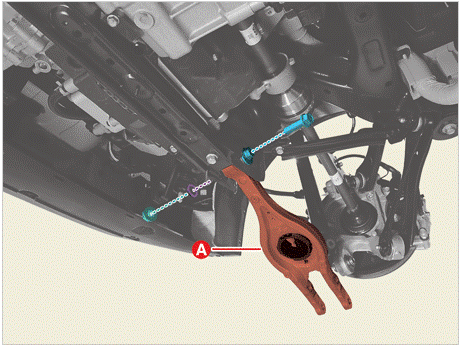

- Remove the rear lower arm (A) after removing the cam bolt, nut, and plate.
Tightening torque:
107.9 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb.ft)
NOTE:- Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.
- Mark and remove all bolts and nuts to prevent incorrectly positioned installation.
Information
Hold the bolt and remove or install the nut.
