REAR SUSPENSION SYSTEM (2WD / 70kW+160kW AWD)
>>
Components And Components Location
Components And Components Location

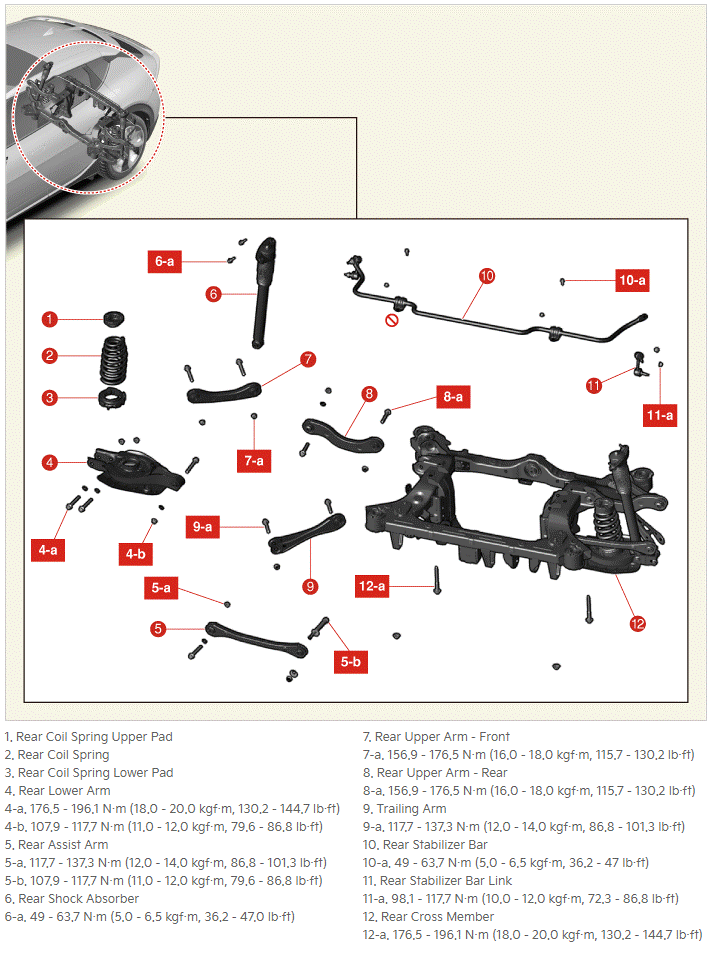

Fig 1: Rear Suspension System Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
