Removal And Installation - (2WD): Removal

WARNING:

When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
When working on high voltage system or related system, make sure that you are familiar and comply with the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.

Align the steering wheel straight.
Turn the IG to 'OFF'.
Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD ")
Secure the steering wheel to prevent movement.
NOTE: Changing the clockspring neutral position by rotating the steering wheel with the steering column universal joint removed may result in open circuit and faulty folding of the cable inside the clockspring after installation.
Remove the front trunk.
(Refer to Body - " FRONT TRUNK ")

Separate the steering universal joint from the steering gear box.

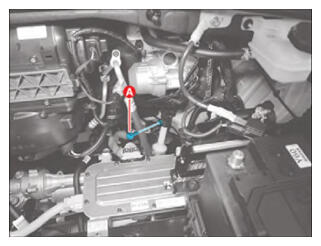

Remove the steering universal joint bolt (A).

Tightening torque:

49 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

G15814484

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the steering universal joint bolt.

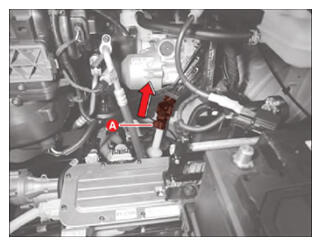

Separate the steering universal joint (A) in the direction of the arrow.

G15814485

Courtesy of KIA MOTORS AMERICA, INC.

Separate the air conditioning compressor.

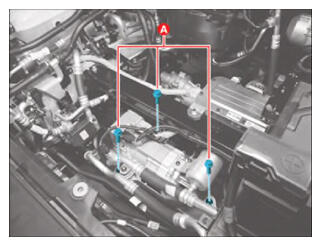

Remove the air conditioning compressor bolts (A).

Tightening torque:

16.7 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.3 lb.ft)

G15814486

Courtesy of KIA MOTORS AMERICA, INC.

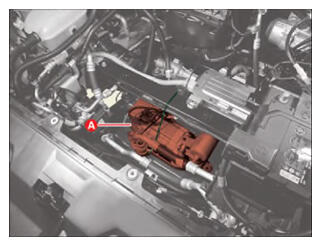

Hold the air conditioning compressor (A) on the body using a cable tie.

G15814487

Courtesy of KIA MOTORS AMERICA, INC.

Remove the front under cover.
(Refer to Motor and Reduction Gear System - " FRONT UNDER COVER ")
Remove the front wheel and tires.
(Refer to Tires/Wheels - " WHEEL ")

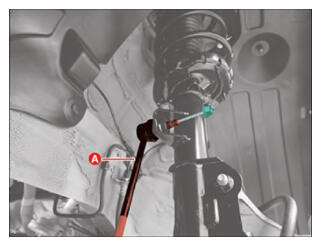

Remove the stabilizer bar link (A) from the front strut assembly after removing the nut.

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G15814488

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

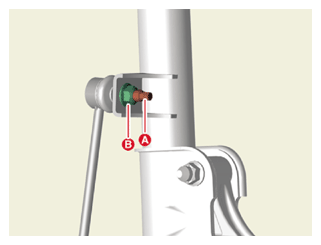

Hold the outer hex (A) when removing or installing the nut (B).

G15814489

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to damage the boot of the link.
Use a hand tool when removing or installing the stabilizer bar link nut.

Separate the lower arm ball joint from the front axle using SST (0K545 - A9100).

Remove the split pin (D).

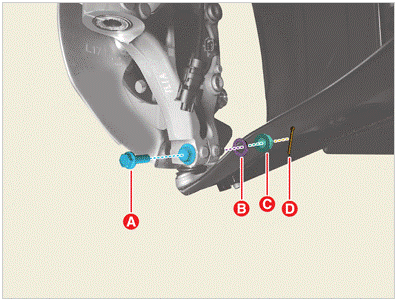

Remove the lower arm bolt (A), washer (B), and nut (C).

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G15814490

Courtesy of KIA MOTORS AMERICA, INC.

Information

Hold the lower arm ball joint bolt and remove or install the nut.

NOTE:

Do not reuse the split pin.
Be careful not to change the position of the bolt, nut, and washer when installing.

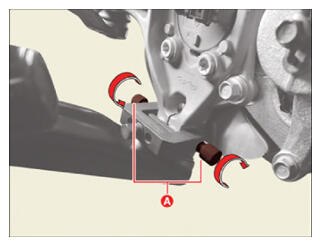

Place the support body in the lower arm bolt mounting hole and then rotate the bolt (A) to install it.

G15814491

Courtesy of KIA MOTORS AMERICA, INC.

Information

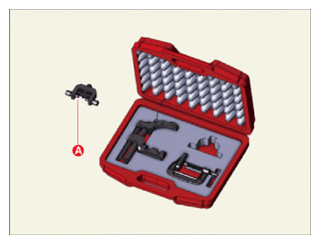

Use the support body (A) of the SST (0K545 - A9100).

G15814492

Courtesy of KIA MOTORS AMERICA, INC.

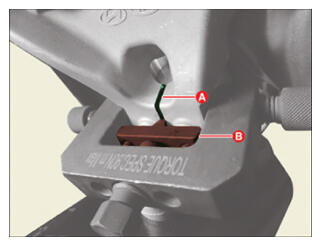

Install the support body (B) in the front axle groove (A).

G15814493

Courtesy of KIA MOTORS AMERICA, INC.

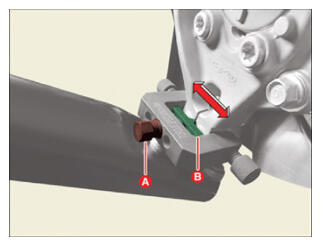

Rotate the bolt (A) to insert the support body (B) to release the front knuckle.

G15814494

Courtesy of KIA MOTORS AMERICA, INC.

Install the main body (A) between the front strut assembly and front lower arm.

G15814495

Courtesy of KIA MOTORS AMERICA, INC.

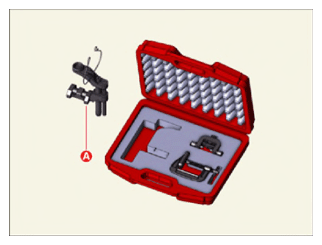

Information

Use the main body (A) of the SST (0K545 - A9100).

G15814496

Courtesy of KIA MOTORS AMERICA, INC.

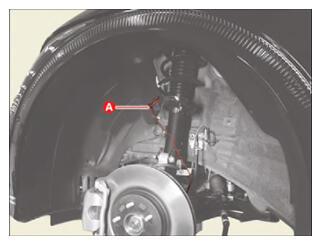

Secure the main body with the wire (A) to prevent it from falling.

G15814497

Courtesy of KIA MOTORS AMERICA, INC.

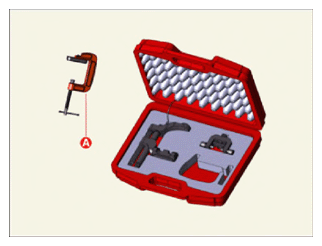

Install the c-clamp (A) by rotating the handle (B) to prevent the main body from slipping.

G15814498

Courtesy of KIA MOTORS AMERICA, INC.

Information

Use the C-clamp (A) of the SST (0K545 - A9100).

G15814499

Courtesy of KIA MOTORS AMERICA, INC.

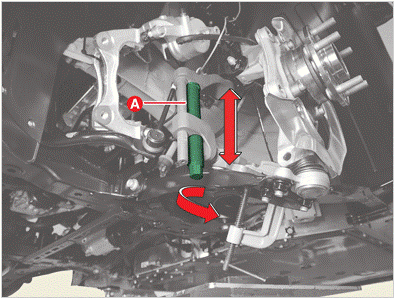

Tighten the bolt (A) to widen the gap between the main body so that the front lower arm can be removed from the front axle.

G15814500

Courtesy of KIA MOTORS AMERICA, INC.

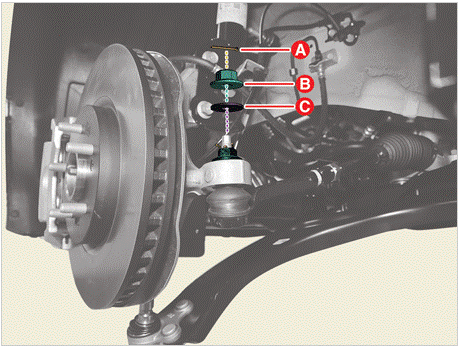

Separate the tie rod end ball joint from the front axle.

Remove the split pin (A).

Remove the lock nut (B), and washer (C).

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G15814501

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Do not reuse the split pin.
Do not reuse the lock nut.
Be careful not to damage the boot of the link.
Use a hand tool when removing or installing the lock nut.

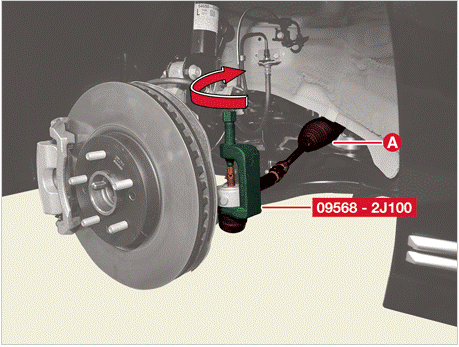

Separate the tie rod end (A) using SST (09568 - 2J100).

G15814502

Courtesy of KIA MOTORS AMERICA, INC.

Remove the PTC heater bolts (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the 3-way valve bolts (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

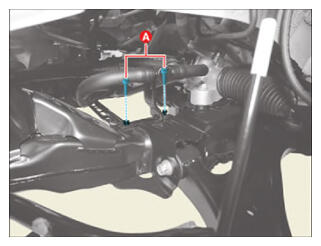

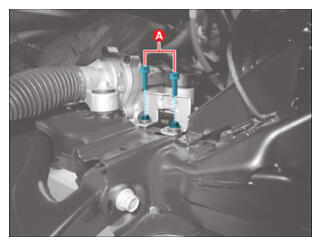

Remove the distribution pipe bracket bolts (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

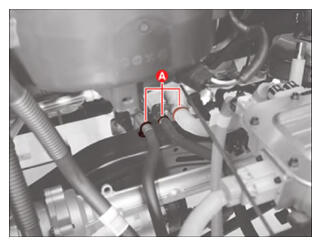

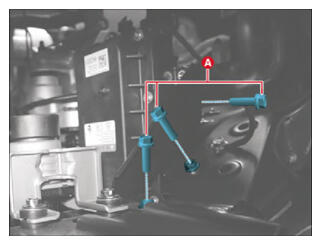

Remove the battery EWP bolts (A) and nut (B).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

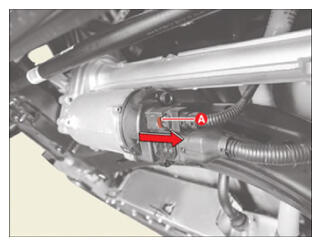

Disconnect the MDPS power pack connectors.

Pull the connector keys (A) in the direction of the arrow.

G15814507

Courtesy of KIA MOTORS AMERICA, INC.

G15814508

Courtesy of KIA MOTORS AMERICA, INC.

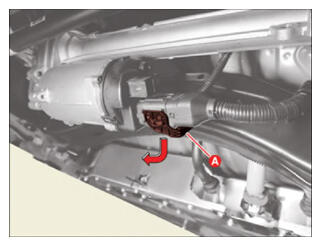

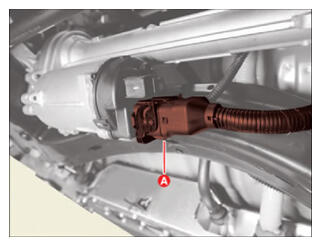

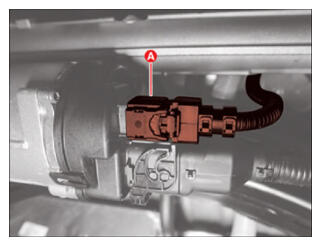

Disconnect the connectors (A).

G15814509

Courtesy of KIA MOTORS AMERICA, INC.

G15814510

Courtesy of KIA MOTORS AMERICA, INC.

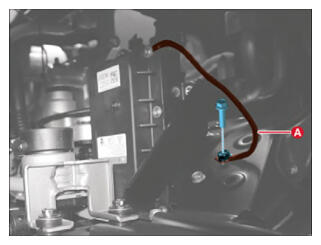

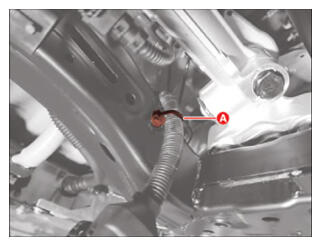

Remove the ground cables (A) after removing the bolts.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

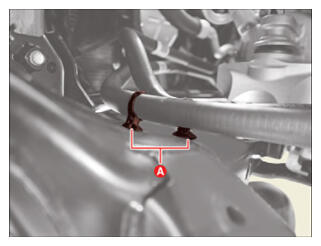

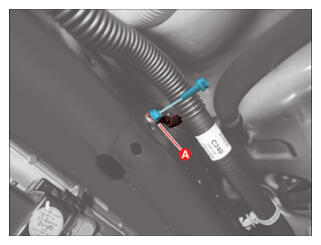

Remove the wiring clips (A) on the front sub frame.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

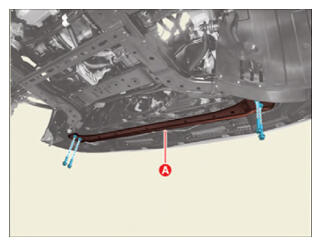

Remove the front sub frame bar (A) after removing the bolts.
Tightening torque:

166.7 - 186.3 N.m (17.0 - 19.0 kgf.m, 123 - 137.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

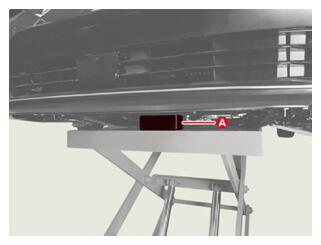

Support the front sub frame with the table lift (A) securely.

Courtesy of KIA MOTORS AMERICA, INC.

WARNING: Be careful not to lift the table lift too much. The vehicle may fall due to a change of center of gravity.

CAUTION: Do not use small jacks such as transaxle jacks. The front sub frame may tilt and cause injury.

Information
- When installing or removing the front subframe stay bolts and nuts, adjust the table lift position to make a workspace.
- Place the rubber block (A) between the front sub frame and table lift to maintain level.
Courtesy of KIA MOTORS AMERICA, INC.

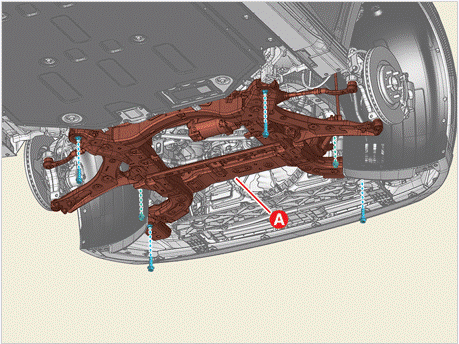

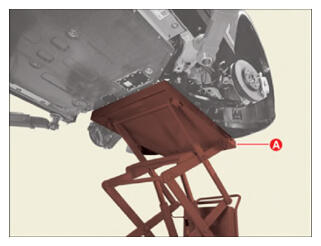

Remove the bolts and nuts, and then lower the table lift slowly to remove the front sub frame (A).
Tightening torque:

176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

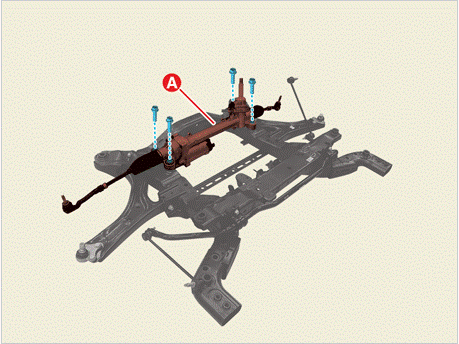

Remove the steering gear box (A) after removing the bolts.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing the steering gear box, pre-tighten all bolts and tighten to the specified torque.
Remove the front lower arm (A) after removing the bolts, nuts, and washers.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

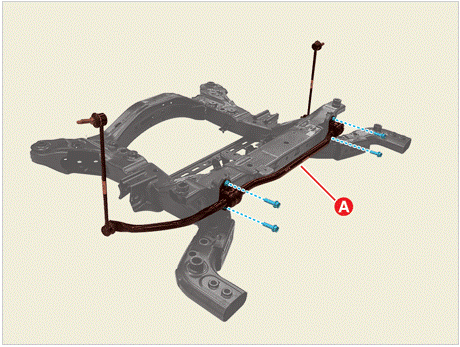

Remove the front stabilizer bar (A) after removing the bolts.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
