Front Strut Assembly: Inspection: Notes

Check the strut insulator bearing for wear and damage.
Check the rubber parts for damage and deterioration.

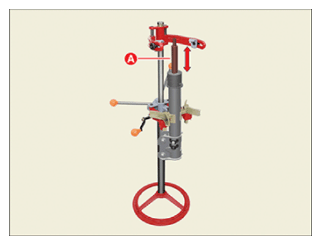

Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.

Courtesy of KIA MOTORS AMERICA, INC.
