[Front Stabilizer Bar]

  1. Remove the front wheel and tires.

    (Refer to Tires/Wheels - " WHEEL  ")

  2. Remove the front under cover.

    (Refer to Motor and Reduction Gear System - " FRONT UNDER COVER  ")

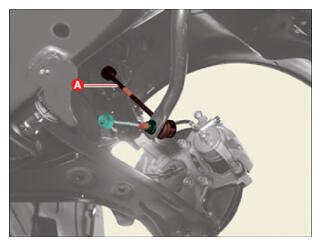

  3. Remove the stabilizer bar link (A) from the front strut assembly after removing the nut.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G15814476Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

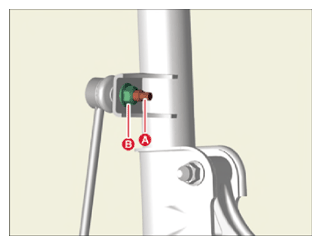

    • Hold the outer hex (A) when removing or installing the nut (B).
      G15814477Courtesy of KIA MOTORS AMERICA, INC.
    • Be careful not to damage the boot of the link.
    • Use a hand tool when removing or installing the stabilizer bar link nut.
  4. Remove the front wheel guard.

    (Refer to Body - " FRONT WHEEL GUARD  ")

  5. Remove the front stabilizer bar (A) after removing the bolts.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

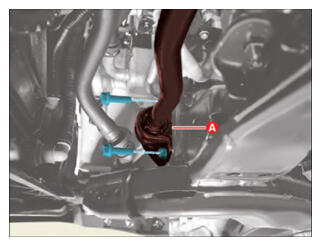

    [LH]

    G15814478Courtesy of KIA MOTORS AMERICA, INC.

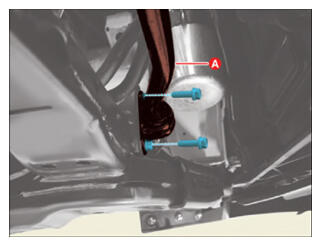

    [RH]

    G15814479Courtesy of KIA MOTORS AMERICA, INC.
