[Front Stabilizer Bar Link]

Remove the front wheel and tires.
(Refer to Tires/Wheels - " WHEEL ")

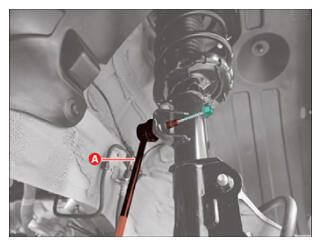

Remove the stabilizer bar link (A) from the front strut assembly after removing the nut.

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G15814472

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

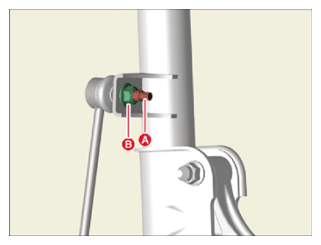

Hold the outer hex (A) when removing or installing the nut (B).

G15814473

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to damage the boot of the link.
Use a hand tool when removing or installing the stabilizer bar link nut.

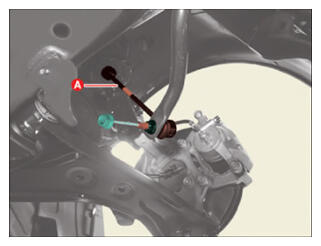

Remove the stabilizer bar link (A) from the stabilizer bar after removing the nut.

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G15814474

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

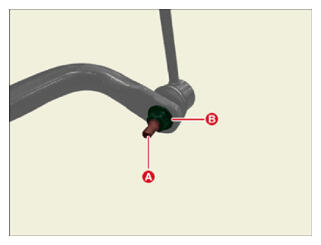

Hold the outer hex (A) when removing or installing the nut (B).

G15814475

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to damage the boot of the link.
Use a hand tool when removing or installing the stabilizer bar link nut.
