Disassembly And Reassembly: Disassembly
- Remove the stabilizer bar bushing bracket (A) using a flat-head screwdriver or suitable tool.
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
Take care not to deform when removing and replace if deformed.

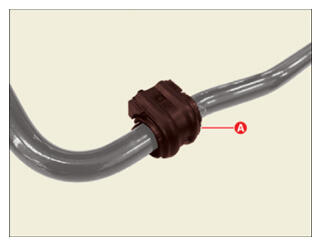

- Remove the stabilizer bar bushing (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
Do not reuse the stabilizer bar bushing (A).
