[Front Lower Arm Assembly]

(Refer to Tires/Wheels - " WHEEL  ")

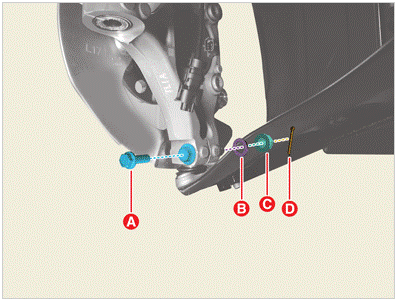

1. Remove the split pin (D).
2. Remove the lower arm bolt (A), washer (B), and nut (C).

   Tightening torque:

   98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

   Hold the lower arm ball joint bolt and remove or install the nut.

   NOTE:

   • Do not reuse the split pin.
   • Be careful not to change the position of the bolt, nut, and washer when installing.
3. Place the support body in the lower arm bolt mounting hole and then rotate the bolt (A) to install it.

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

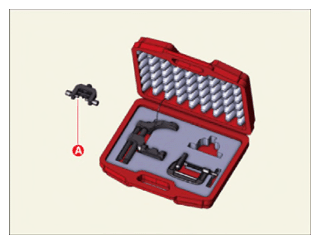

   Use the support body (A) of the SST (0K545 - A9100).

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install the support body (B) in the front axle groove (A).

   Courtesy of KIA MOTORS AMERICA, INC.

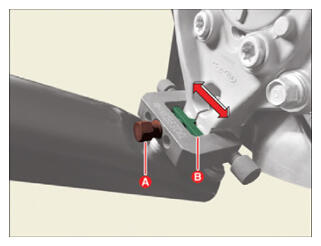

5. Rotate the bolt (A) to insert the support body (B) to release the front knuckle.

   Courtesy of KIA MOTORS AMERICA, INC.

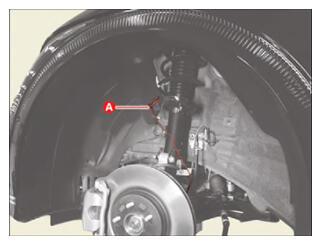

6. Install the main body (A) between the front strut assembly and front lower arm.

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

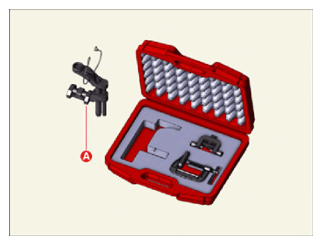

   Use the main body (A) of the SST (0K545 - A9100).

   Courtesy of KIA MOTORS AMERICA, INC.

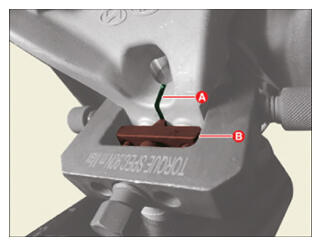

7. Secure the main body with the wire (A) to prevent it from falling.

   Courtesy of KIA MOTORS AMERICA, INC.

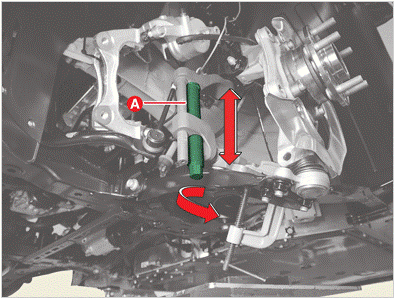

8. Install the c-clamp (A) by rotating the handle (B) to prevent the main body from slipping.

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

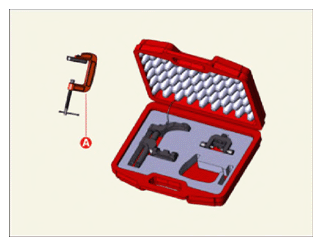

   Use the C-clamp (A) of the SST (0K545 - A9100).

   Courtesy of KIA MOTORS AMERICA, INC.

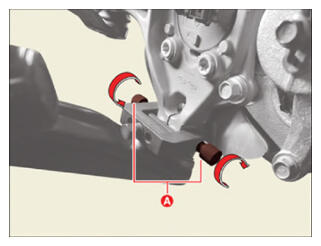

9. Tighten the bolt (A) to widen the gap between the main body so that the front lower arm can be removed from the front axle.

Courtesy of KIA MOTORS AMERICA, INC.

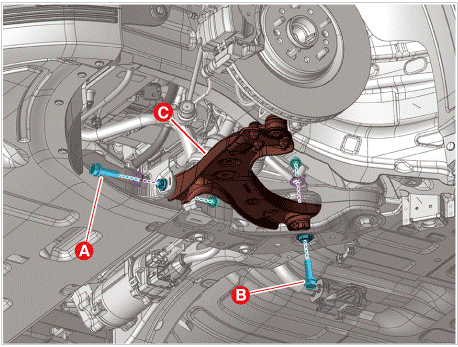

Tightening torque:

(A):  117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb.ft)

(B):  156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
