Disassembly And Reassembly: Disassembly

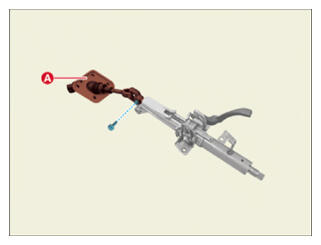

  1. Separate the universal joint assembly (A) after removing the bolt.

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

    G15814690Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the steering universal joint bolt.
