Rear Cross Member under Cover

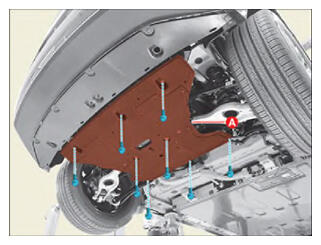

  1. Remove the rear cross member under cover (A) after removing the mounting bolts.

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    G15815953Courtesy of KIA MOTORS AMERICA, INC.
