Rear Motor And Reduction Gear Oil: Replacement

WARNING:

When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
When working on high voltage system or related system, make sure that you are familiar and comply with the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.

NOTE: When checking the reduction gear oil level, be careful not to allow foreign substance (like dust) to enter through the filler hole.

Remove the rear under cover.
(Refer to Rear Motor and Reduction Gear System - "REAR UNDER COVER ")

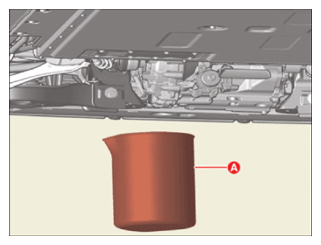

Prepare a clean 5 l beaker (A) to measure the amount of oil.

Courtesy of KIA MOTORS AMERICA, INC.

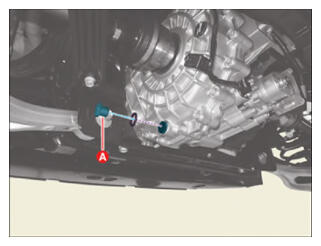

Remove the drain plug (A) and drain oil, and then reinstall the drain plug.
Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

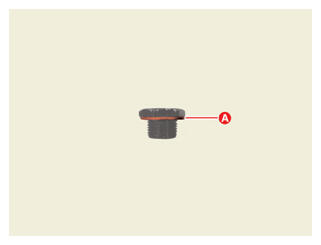

NOTE: The existing drain plug gasket (A) must be replaced with a new one (do not reuse).

Courtesy of KIA MOTORS AMERICA, INC.

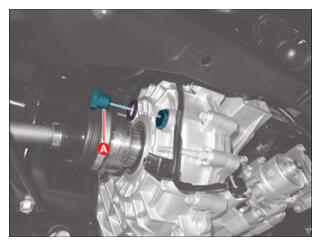

Remove the filler plug (A).

Courtesy of KIA MOTORS AMERICA, INC.
Fill the specified oil through the filler plug hole as much as it has been drained.
Recommended: Kia genuine ATF SP4M-1
Install the filler plug (A).
Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing filler plug gasket (A) must be replaced with a new one (do not reuse).

Courtesy of KIA MOTORS AMERICA, INC.
Install the rear under cover.
(Refer to Rear Motor and Reduction Gear System - "REAR UNDER COVER ")
