Rear Motor And Reduction Gear Assembly: Installation

Install in the reverse order of removal.

NOTE: Make sure the quick connector installed securely after installing coolant hose.

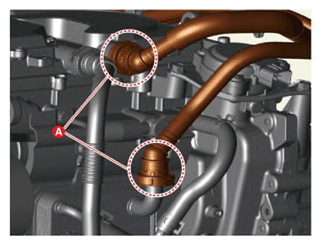

[Type A]

Make sure the quick connector (A) installed securely.

Courtesy of KIA MOTORS AMERICA, INC.

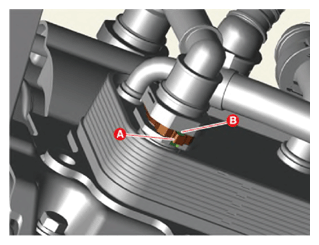

[Type B]

Make sure that the quick connector protrusion (A) fit into the groove (B).

Courtesy of KIA MOTORS AMERICA, INC.

Fill the coolant.
(Refer to Electric Vehicle Cooling System - " COOLANT ")

NOTE: Using the KDS, perform Electric Water Pump (EWP) air bleeding.
Refill the rear motor and reduction gear oil.
(Refer to Rear Motor and Reduction Gear System - "REAR MOTOR AND REDUCTION GEAR OIL ")
After installing the rear motor and reduction gear assembly, perform the leakage test.
(Refer to Battery Control System - " AIR TIGHTNESS ")
Perform the "Motor Control Unit-Rear" and "Initialization of Automatic Resolver Offset Calibration" using the KDS.
(Refer to Motor and Reduction Gear System - MOTOR POSITION & TEMPERATURE SENSOR )

NOTE: If the resolver offset correction initialization is not performed, the output may be reduced and the drivable distance may be shortened.
