REAR MOTOR AND REDUCTION GEAR SYSTEM (2WD / 70kW+160kW AWD)
>>
Rear Motor And Reduction Gear Assembly
>>
Components And Components Location
Components And Components Location

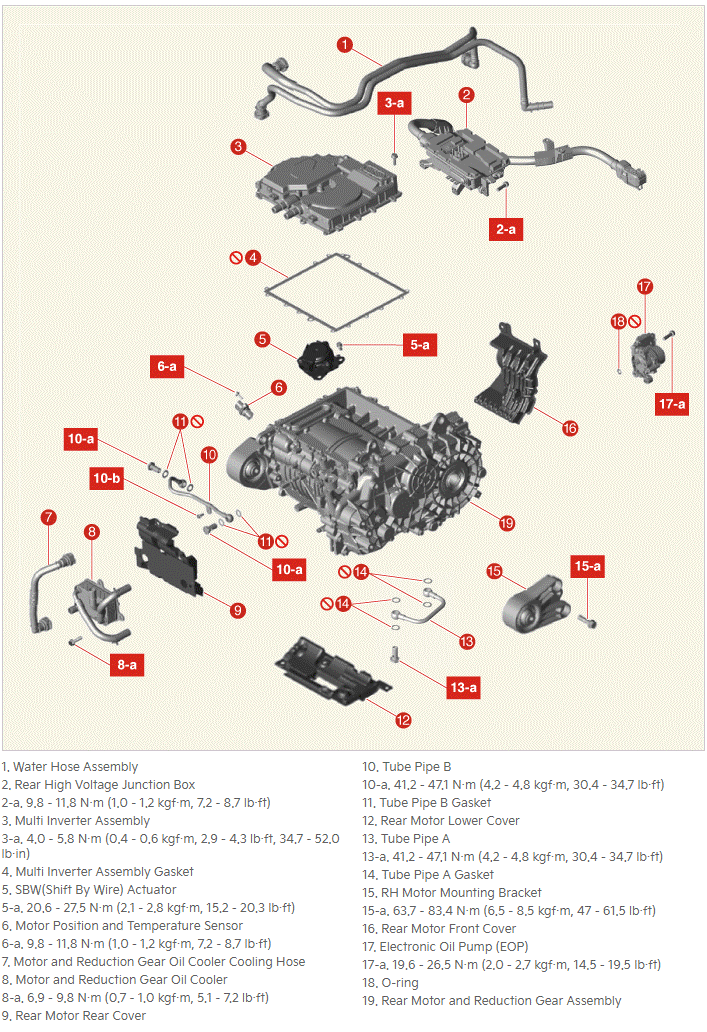

Fig 1: Rear Motor And Reduction Gear Assembly Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
