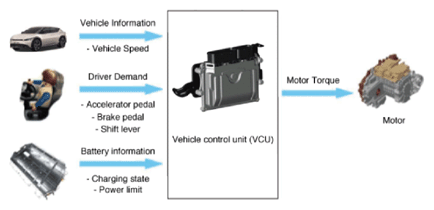

| Drive Motor Control |
- Calculate usable battery power
- Usable motor toque
- Considered motor torque command based on Driver demand (APS, Brake SW, Shift lever)
|
| A/C Load Control |
- The final FATC allowed power command by using the battery information and FATC requested power data.
|
| 12 V Electric Load Power Supply Control |
- LDC operation mode is determined according to 12 V battery information and vehicle status.
|
| Disconnect Actuator System (DAS) Motor |
- As DAS is applied to 4WD vehicles, it controls the connection or disconnection between the front wheel motor and drive shaft depending on the driving condition.
|
| Cluster control |
- Commands to indicate Drive Power, Energy Flow, Service lamp & various lamp lighting.
|
| Distance to Empty (DTE) |
- Command to indicates usable battery energy and distance to empty based on prior drive pattern.
- If drive path is set by using AVNT, DTE accuracy is improved by estimating the energy consumption to destination.
|
| Booking/Remote control |
- Remote control through a smartphone linked with Kia connect
- Reservation Function through operation time setting by driver.
|
| Regenerative braking control |
- Calculates motor charge torque command for regenerative braking.
- Calculates regenerative brake force.
|
