Removal And Installation - Front Motor: Installation

Install in the reverse order of removal.

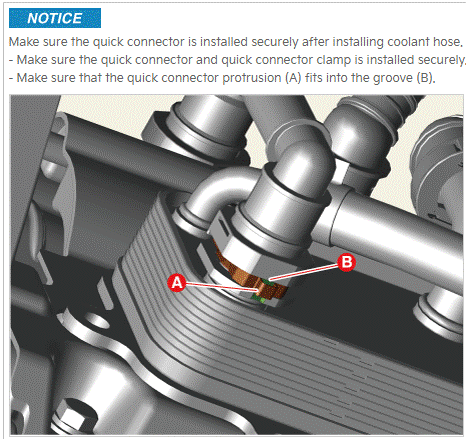

NOTE: Make sure the quick connector is installed securely after installing coolant hose.

Make sure that the quick connector protrusion (A) fits into the groove (B).

Courtesy of KIA MOTORS AMERICA, INC.

Fill with motor system coolant.
(Refer to Electric Vehicle Cooling System - " MOTOR COOLANT ")

NOTE: Perform "Electric Water Pump Control" to air bleeding using KDS when filling with coolant.
Refill the front motor and reduction gear oil.
(Refer to Motor and Reduction Gear System - " FRONT MOTOR AND REDUCTION GEAR OIL ")
