Joint Assembly (Reduction Gear Side): Removal

NOTE:

Integrated Drive Axle (IDA) requires special grease, so do not add any other type of grease.
When replacing the boot band, it must be a new one.

Remove the IDA.
(Refer to Rear Driveshaft & Axle Assembly - " INTEGRATED DRIVE AXLE (IDA) ")

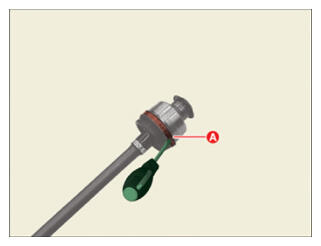

Remove the reduction gear side large diameter boot band (A) using a flat-head screw driver.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Broaden the (A) using a flat-head screw driver and push the (B) to remove it.

Courtesy of KIA MOTORS AMERICA, INC.

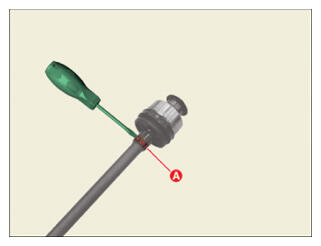

Remove the reduction gear side small diameter boot band (A) using a flat-head screw driver.

Courtesy of KIA MOTORS AMERICA, INC.

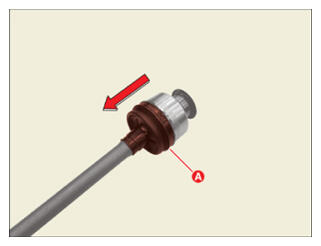

Remove the boot (A) from the reduction gear side housing.

Courtesy of KIA MOTORS AMERICA, INC.

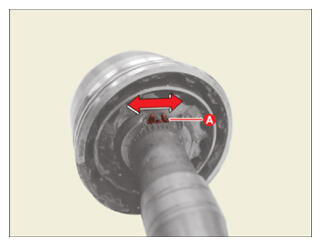

Extend the snap ring (A) from side to side using a snap ring plier.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clean the grease inside the hub bearing as much as possible using a clean cloth to locate the snap ring.

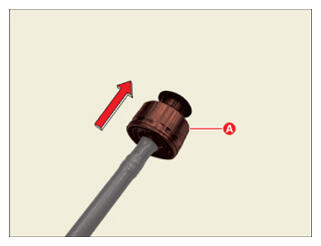

Remove the reduction gear side housing (A) while the snap ring is extended.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the snap ring.
Remove reduction gear side boot (A).

Courtesy of KIA MOTORS AMERICA, INC.
