Removal And Installation: Installation

  1. Install in the reverse order of removal.

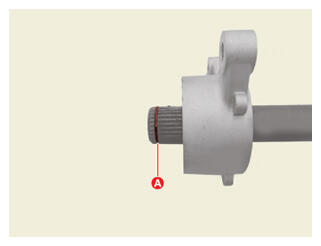

    NOTE: The existing inner shaft circlip should be replaced with new one (do not reuse).
    G15814316Courtesy of KIA MOTORS AMERICA, INC.
