  1. Remove the crash pad air vent duct [LH].

    (Refer to Body - " CRASH PAD AIR VENT  ")

  2. Remove the crash pad center garnish.

    (Refer to Body - " CRASH PAD GARNISH  ")

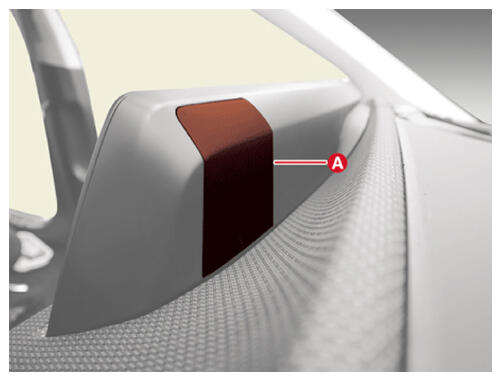

  3. Remove the cluster blanking cover (A).
    G15812586Courtesy of KIA MOTORS AMERICA, INC.

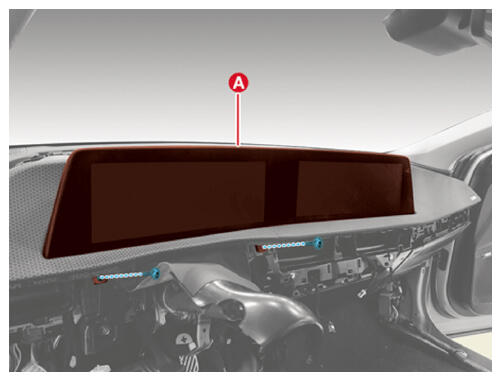

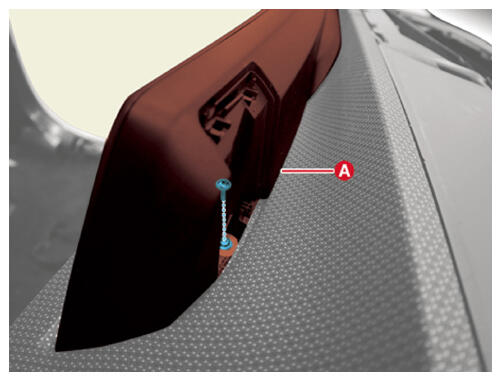

  4. Remove the cluster (A) after removing the screws.
    G15812587Courtesy of KIA MOTORS AMERICA, INC.
    G15812588Courtesy of KIA MOTORS AMERICA, INC.

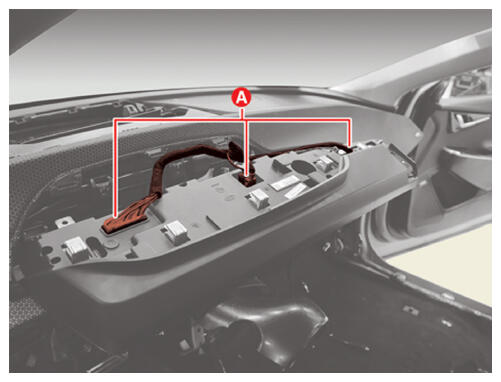

  5. Disconnect the cluster connectors (A).
G15812589Courtesy of KIA MOTORS AMERICA, INC.

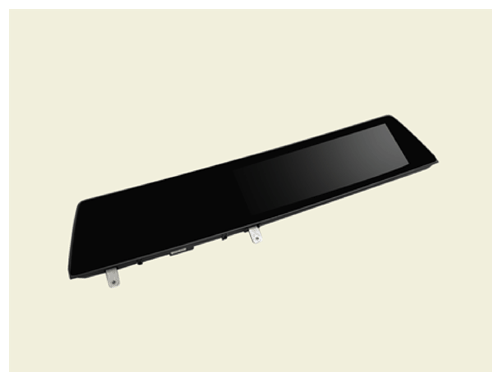

G15812590Courtesy of KIA MOTORS AMERICA, INC.
