Variant Coding

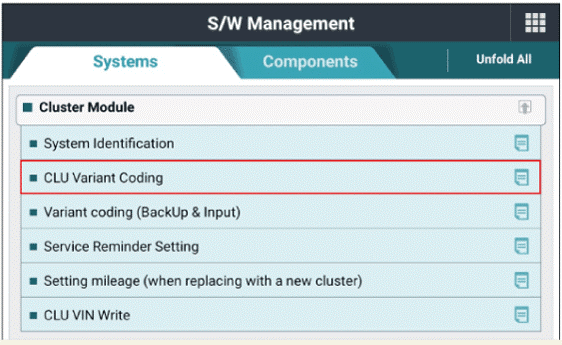

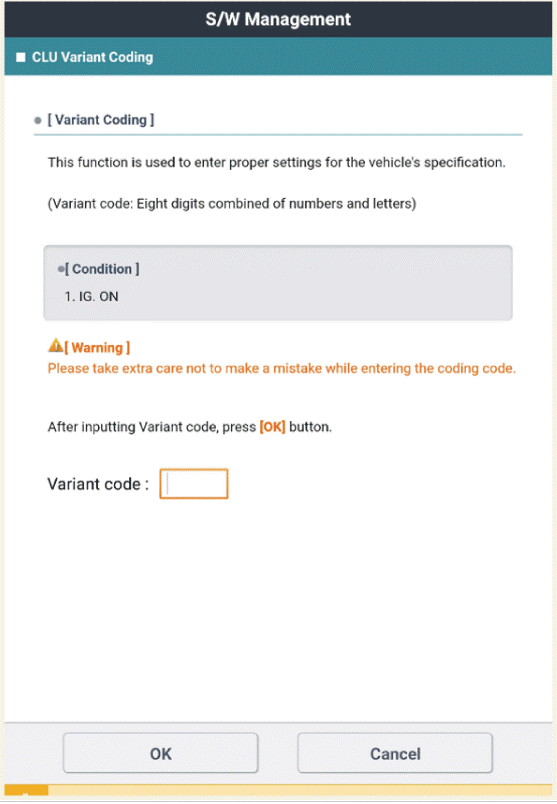

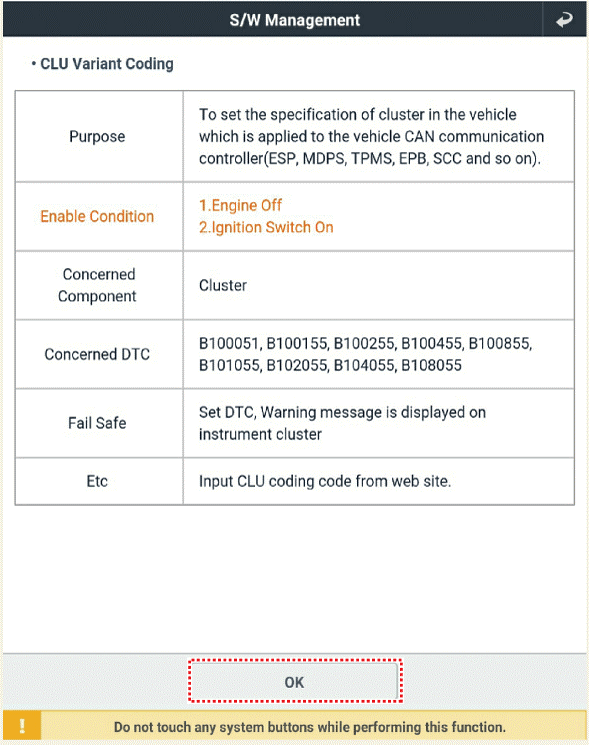

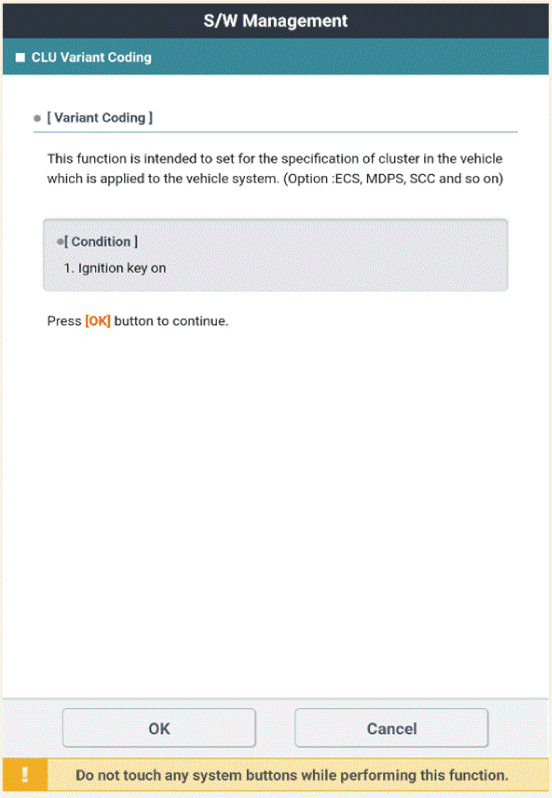

After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
When replacing the cluster, perform the "Setting mileage" with KDS.
(S/W Management → Cluster Module → Setting mileage)

Information

Refer to the KDS screen for operating conditions and details
