Steering Column Shroud Lower Panel

  1. Remove the crash pad lower panel.

    (Refer to Crash Pad -  "CRASH PAD PANEL ")

  2. Remove the steering wheel.

    (Refer to Steering System - " STEERING WHEEL  ")

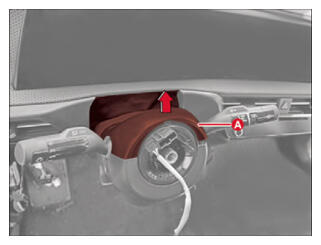

  3. Separate the crash pad garnish [LH] column part (A) in the direction of the arrow by using the remover.
    G15811959Courtesy of KIA MOTORS AMERICA, INC.

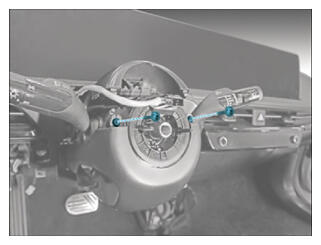

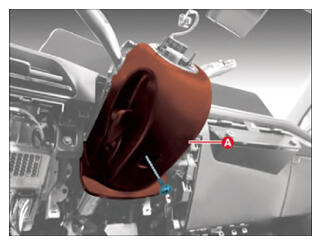

  4. Remove the steering column shroud lower panel (A) after removing the screws.
G15811960Courtesy of KIA MOTORS AMERICA, INC.
G15811961Courtesy of KIA MOTORS AMERICA, INC.
