Removal And Installation: Removal

Remove the crash pad center panel.
(Refer to Crash Pad - "CRASH PAD PANEL ")
Remove the front center speaker.
(Refer to Body Electrical System - " SPEAKER ")
Remove the multifunction switch.
(Refer to Body Electrical System - " MULTIFUNCTION SWITCH ")
Remove the Particulate Matter (PM) sensor.
(Refer to Heating, Ventilation and Air Conditioning - "PM SENSOR ")

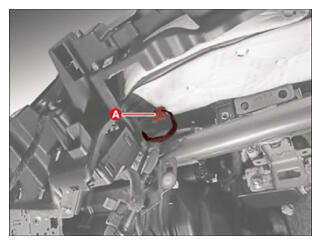

Disconnect the duct sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

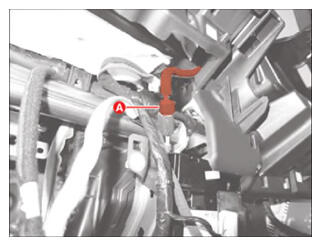

Disconnect the crash pad antenna connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

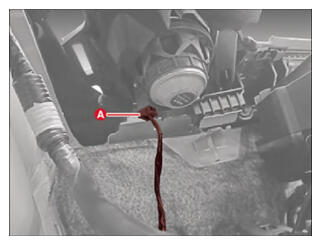

Disconnect the front midrange speaker connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

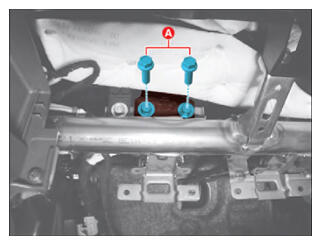

Remove the passenger airbag bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

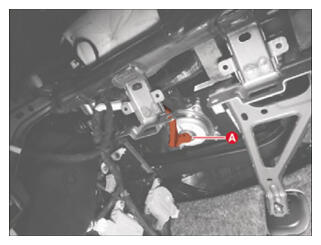

Disconnect the passenger airbag connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the main crash pad assembly (A) after removing the bolts and nuts.
Tightening torque:

17.7 - 23.5 N.m (1.8 - 2.4 kgf.m, 13.0 - 17.4 lb.ft)

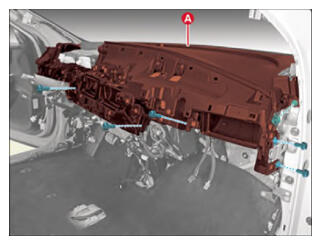

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

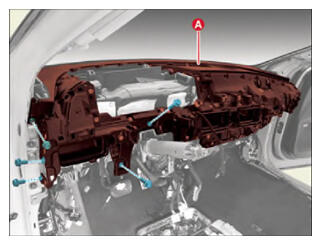

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
