Removal And Installation: Removal

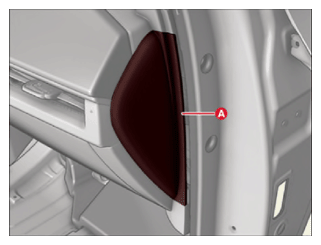

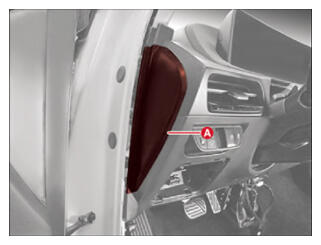

- Remove the crash pad side cover (A) by using the remover.
[LH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
Information

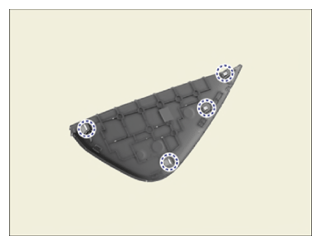

Clip position: Dotted Circles
[RH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
Information

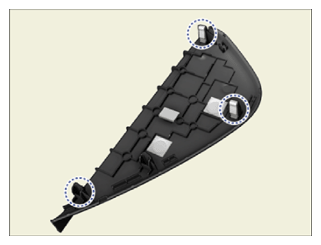

Clip position: Dotted Circles
