Removal And Installation: Removal

  1. Remove the main crash pad assembly.

    (Refer to Body - " MAIN CRASH PAD ASSEMBLY  ")

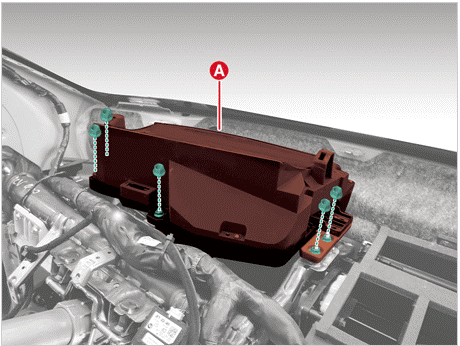

  2. Remove the augmented reality head up display (AR HUD) unit (A) after removing the nuts.
    G15812481Courtesy of KIA MOTORS AMERICA, INC.

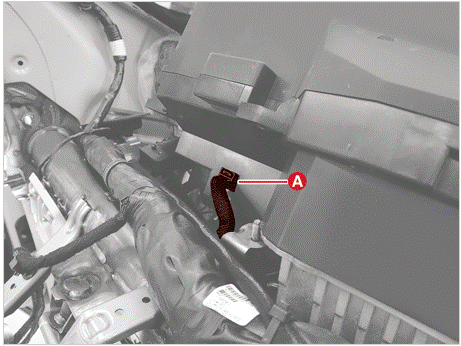

  3. Disconnect the AR HUD unit connector (A).
G15812482Courtesy of KIA MOTORS AMERICA, INC.
