Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the cluster fascia panel.
(Refer to Crash Pad - "CLUSTER FASCIA PANEL ")
Remove the glove box housing.
(Refer to Crash Pad - "GLOVE BOX HOUSING ")
Remove the center fascia lower panel.
(Refer to Crash Pad - "CENTER FASCIA PANEL ")

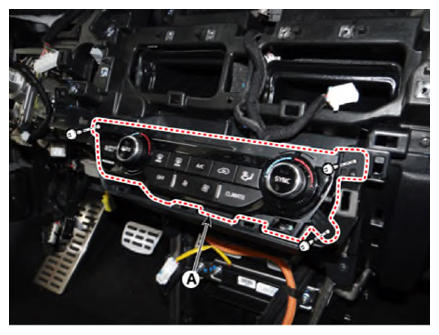

Separate the heater control unit (A) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.

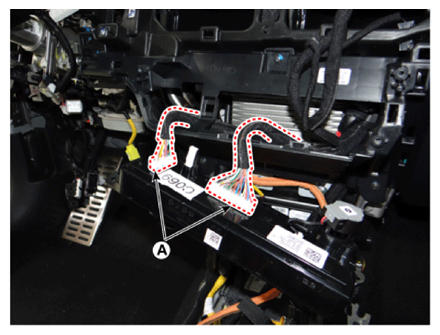

Remove the heater control unit (B) after disconnecting the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

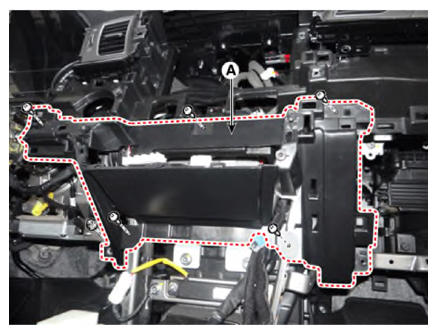

Remove the crash pad main lower panel (A) after loosening the nut & screws.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connectors are connected properly.
- Replace any damaged clips.
