Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

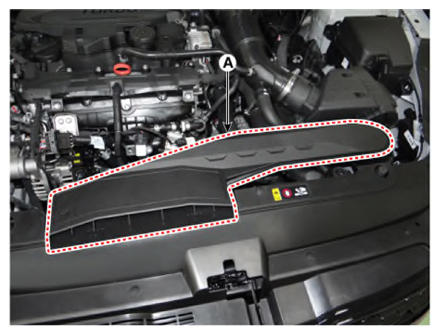

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.

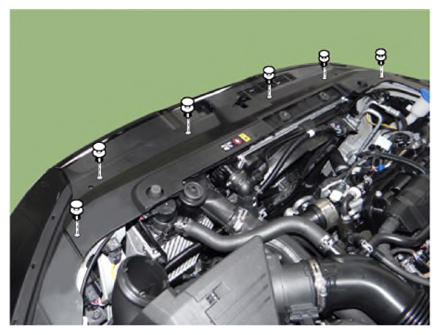

Loosen the radiator upper cover mounting clips.

Courtesy of KIA MOTORS AMERICA, INC.

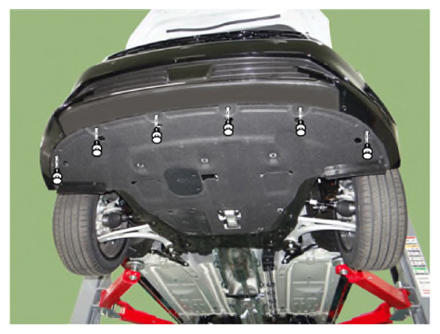

Loosen the front bumper lower clips.

Courtesy of KIA MOTORS AMERICA, INC.

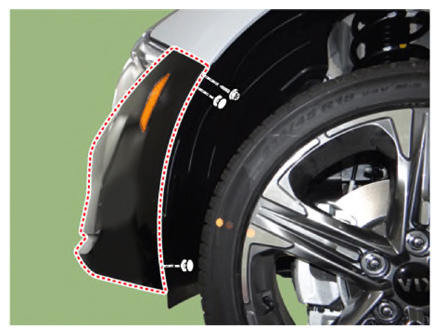

Loosen the pin-type retainers and screws on the side of front bumper, detach the side part of front bumper.
NOTE: When you pull out the front bumper, the side part of the front bumper could be damaged by the projection.

Courtesy of KIA MOTORS AMERICA, INC.

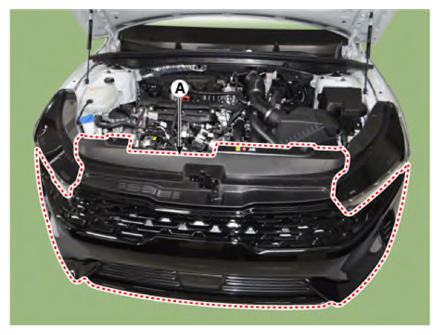

Remove the front bumper assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Press the lock pin and separate the front bumper main connector (A).

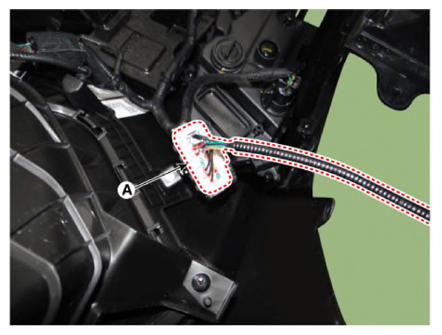

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

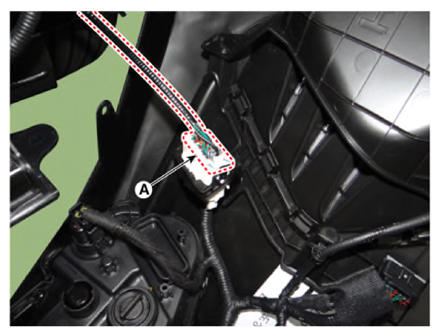

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected in properly.
- Replace any damaged clips (or pin-type retainers).
