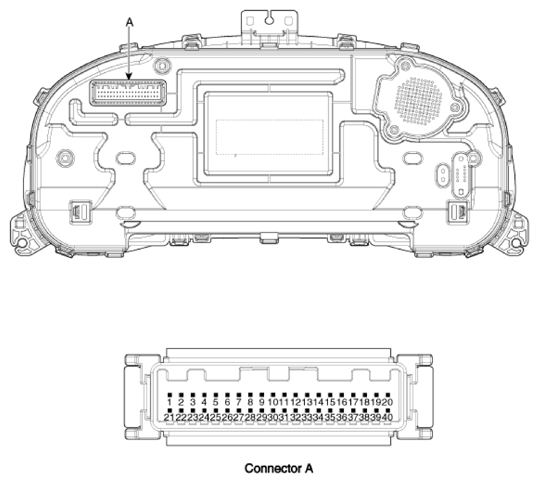

| 1 |
Ground |
| 2 |
Illumination (-) |
| 3 |
Rheostat switch (Down)_Input |
| 4 |
Rheostat switch (Up)_Input |
| 5 |
Detent |
| 6 |
AT ('P' Position) |
| 7 |
AT ('R' Position) |
| 8 |
AT ('N' Position) |
| 9 |
AT ('D' Position) |
| 10 |
AT ('S' Position) |
| 11 |
Immobilizer_Input |
| 12 |
Vehicle speed_Output |
| 13 |
Alternator_Input (Gasoline only) |
| 14 |
Fuel sender (+)_Input |
| 15 |
Vehicle speed_Input |
| 16 |
Fuel sender (-)_Input |
| 17 |
Water separator_Input (Diesel only) |
| 18 |
Air bag (+)_Input |
| 19 |
Oil press switch_Input (Gasoline only) |
| 20 |
Tail lamp_Input |
| 21 |
Trip switch (-)_Input |
| 22 |
Trip switch 1 (+)_Input |
| 23 |
Trip switch 2 (+)_Input |
| 24 |
MT ('N' Position) |
| 25 |
Drive mode switch_Input |
| 26 |
Speaker1 (+)_Output |
| 27 |
Speaker1 (-)_Output |
| 28 |
Washer level low signal |
| 29 |
M-CAN (Low) |
| 30 |
M-CAN (High) |
| 31 |
Engine run state_Output |
| 32 |
C-CAN (High) |
| 33 |
C-CAN (Low) |
| 34 |
Outside temperature_Input |
| 35 |
FFV 5V_Output (+) |
| LPI Fuel_Input |
| 36 |
Steering heater indicator_Input |
| 37 |
Ground |
| 38 |
LDC (Battery +)_Input |
| 39 |
IGN1 |
| 40 |
Battery (+) |
