■ Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

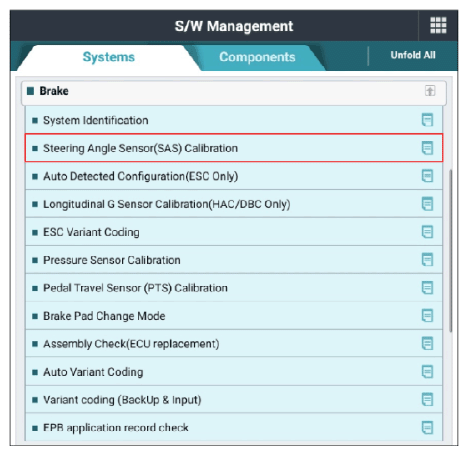

G14867945Courtesy of KIA MOTORS AMERICA, INC.

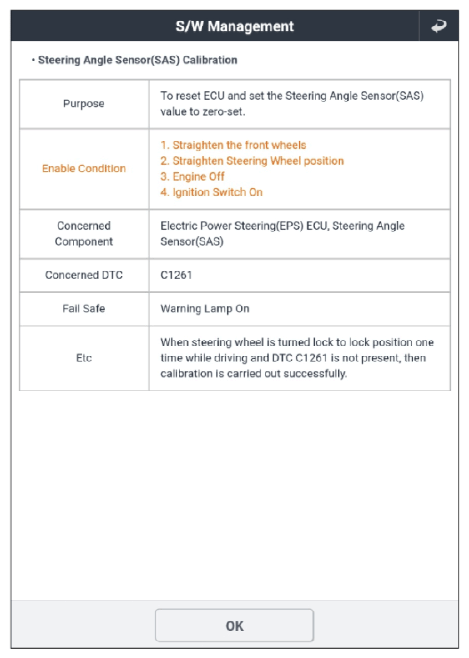

G14867946Courtesy of KIA MOTORS AMERICA, INC.

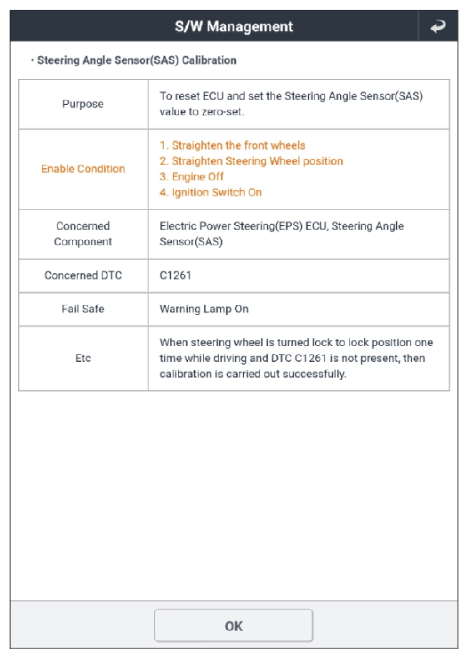

G14867947Courtesy of KIA MOTORS AMERICA, INC.
G14867948Courtesy of KIA MOTORS AMERICA, INC.
G14867949Courtesy of KIA MOTORS AMERICA, INC.
