System Inspection

Inspection Condition	Inspection Procedure	Reference

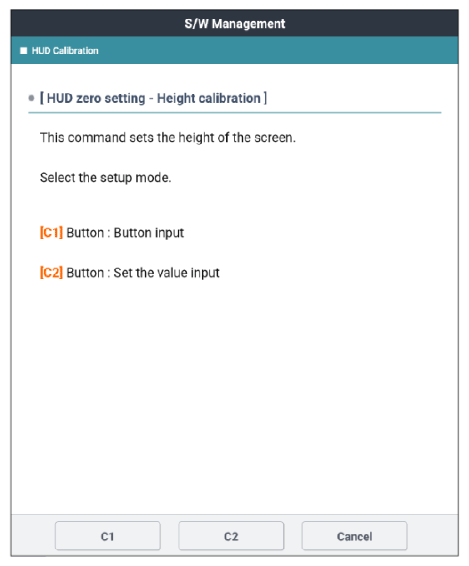

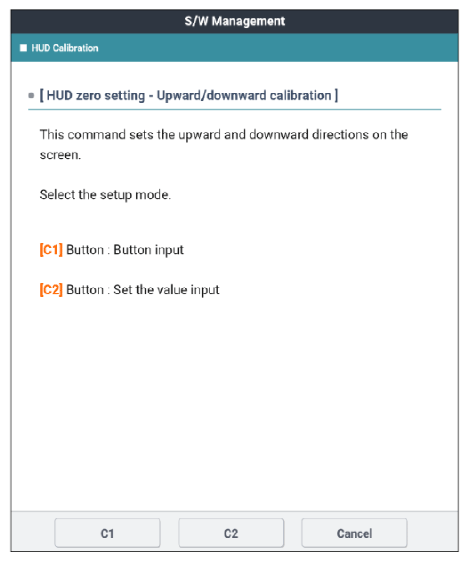

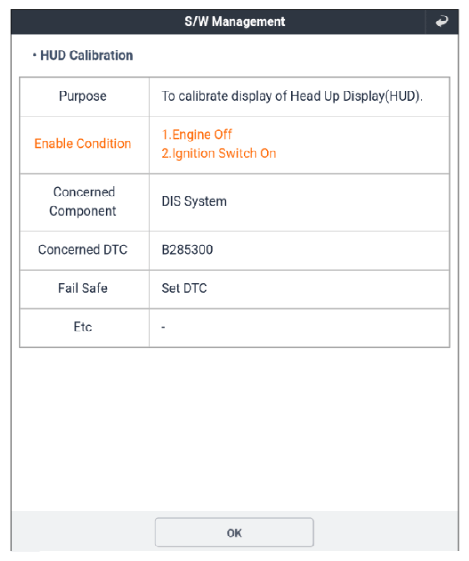

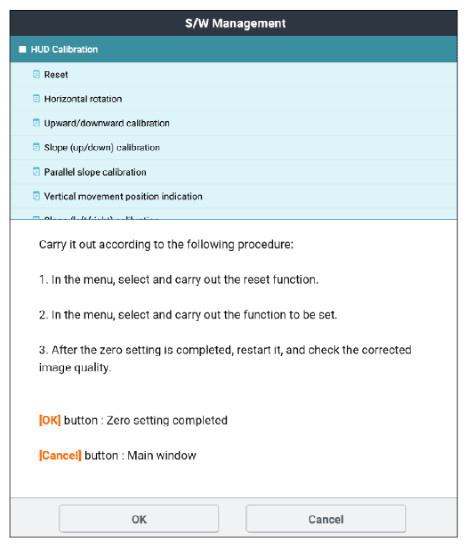

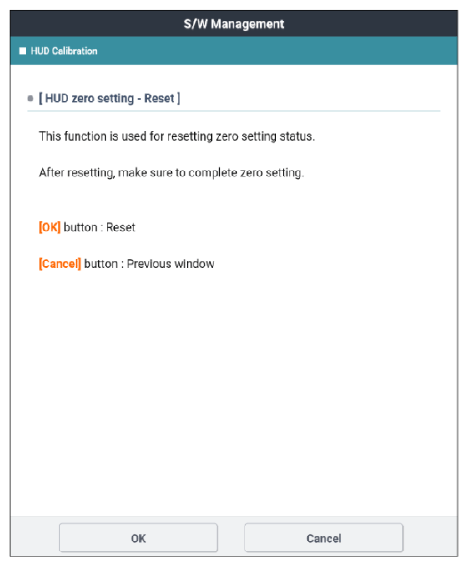

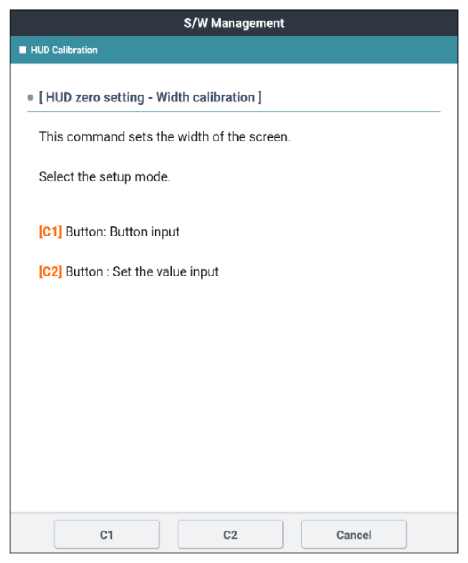

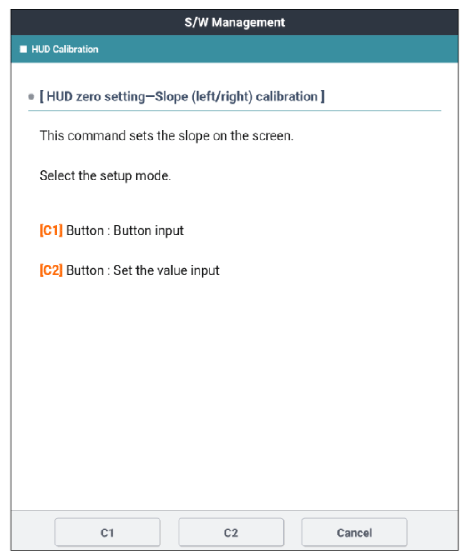

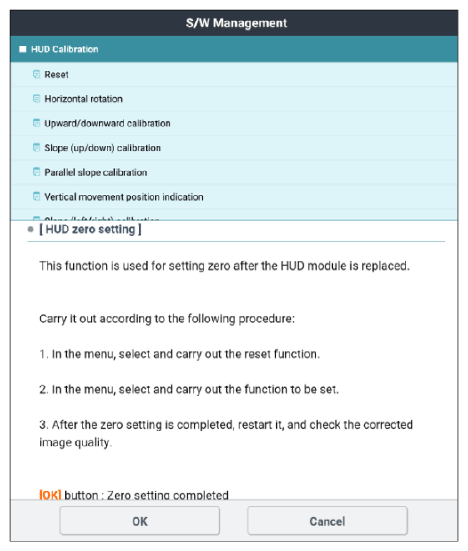

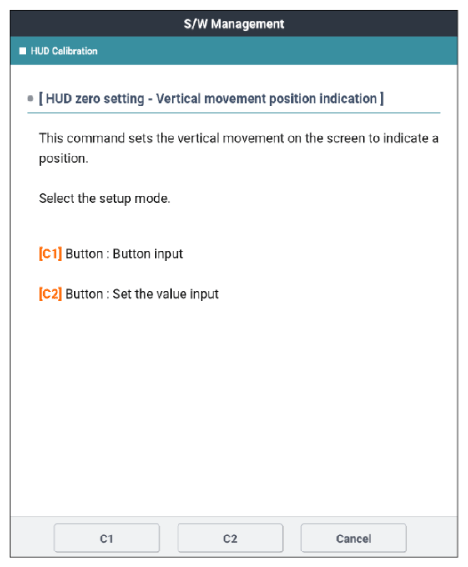

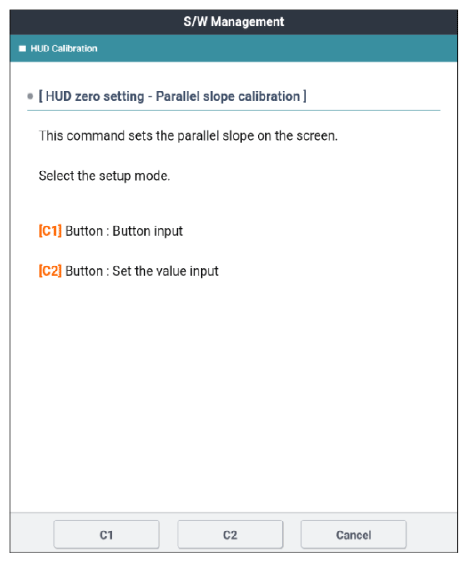

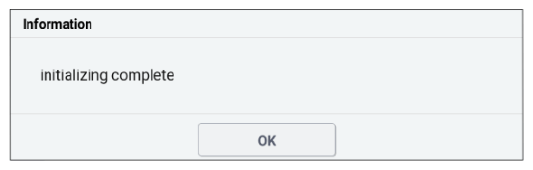

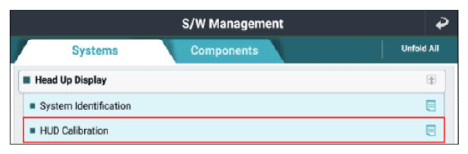

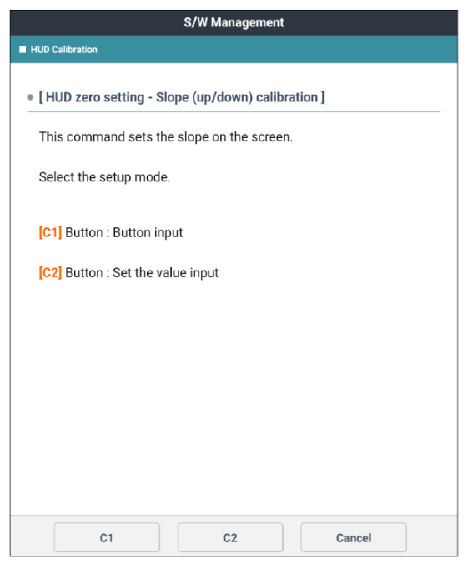

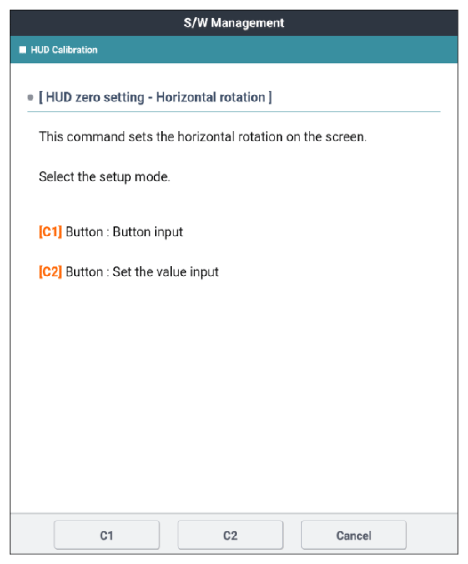

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Select "Vehicle S/W Management" with KDS. Select "HUD Calibration" with KDS. Go to "Verification of Repair " procedure after image calibration.	Fig.1 to 15

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the - and go to "Verification of Repair " procedure.

No Good
