Glove Box

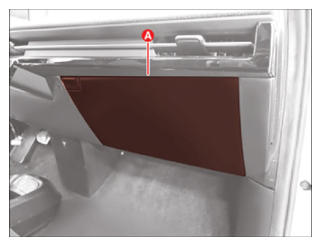

  1. Open the glove box (A).
    G14861086Courtesy of KIA MOTORS AMERICA, INC.

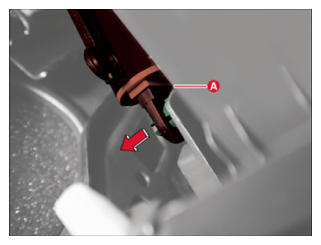

  2. Separate the glove box air damper (A).
    G14861087Courtesy of KIA MOTORS AMERICA, INC.

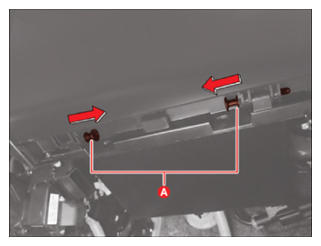

  3. Remove glove box knob (A) by pulling in the direction of the arrow.
    G14861088Courtesy of KIA MOTORS AMERICA, INC.

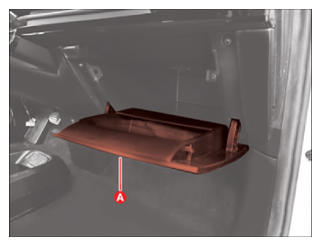

  4. Remove the glove box (A) by pulling downward.
G14861089Courtesy of KIA MOTORS AMERICA, INC.
