Crash Pad Lower Panel

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the crash pad side cover [LH].

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

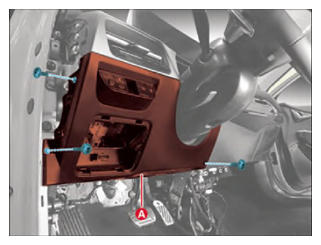

  3. Remove the crash pad lower panel (A) after removing the screws.
    G14861061Courtesy of KIA MOTORS AMERICA, INC.
    G14861062Courtesy of KIA MOTORS AMERICA, INC.

    Information

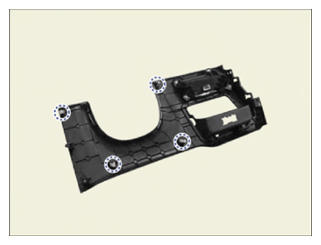

    Clip mounting position:

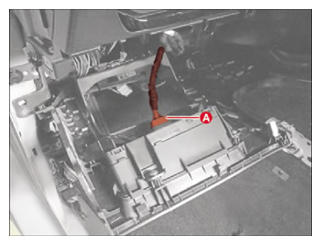

  4. Disconnect the crash pad side switch connector (A).
    G14861063Courtesy of KIA MOTORS AMERICA, INC.

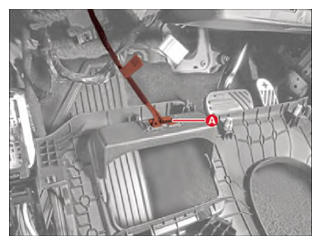

  5. Disconnect the diagnostic connector (A).
G14861064Courtesy of KIA MOTORS AMERICA, INC.
