Home >> Kia >> 2022 >> EV6 First Edition >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (2 Of 3) >> DTC B1418-00: SIS (Side Impact Sensor) Rear-Driver Defect >> DTC Inspection >> Monitor DTC Status

Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

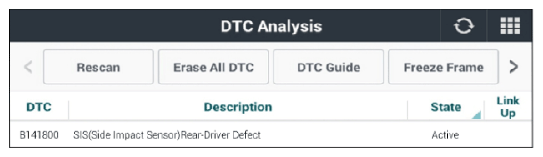

 Fig.1
G14863898Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. The replace RDSIS and then go to "Verification of Repair " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
