Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

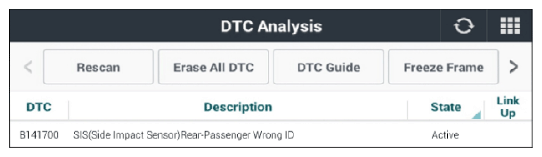

 Fig.1
G14863896Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. The replace RPSIS and then go to "Verification of Repair " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
