Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

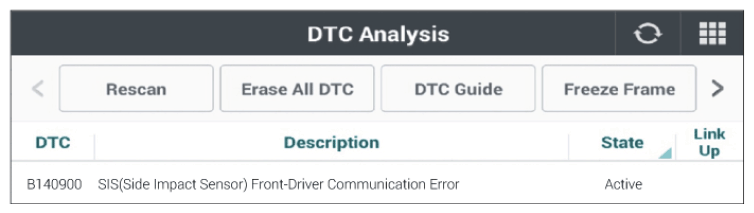

 Fig.1
G14863866Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to "WIRING INSPECTION " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
