Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

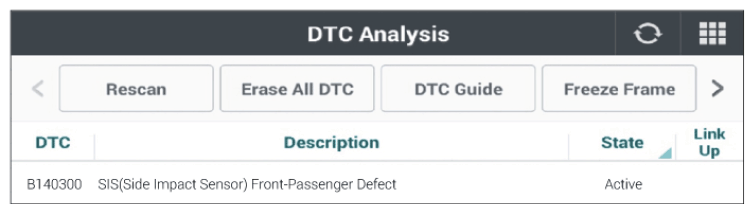

 Fig.1
G14863852Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. The replace PSIS and then go to "Verification of Repair " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
