Monitor KDS Data

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor parameters in "Current Data" with KDS.

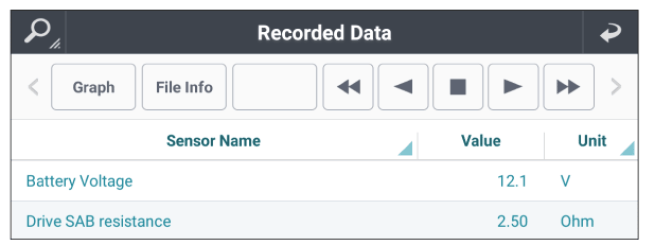

 Fig.1
G14863799Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Fault is intermittent caused by poor contact in the sensor's and/or SRSCM's connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

  1. Go to "WIRING INSPECTION " procedure.
