■ Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.

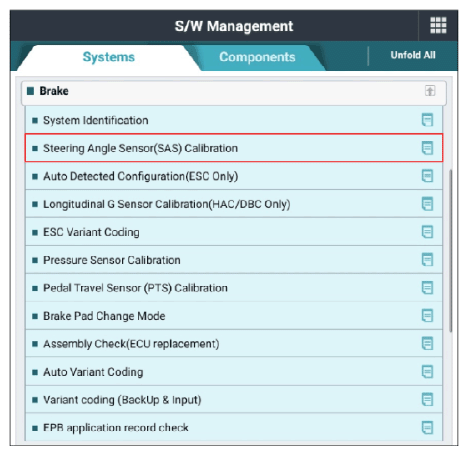

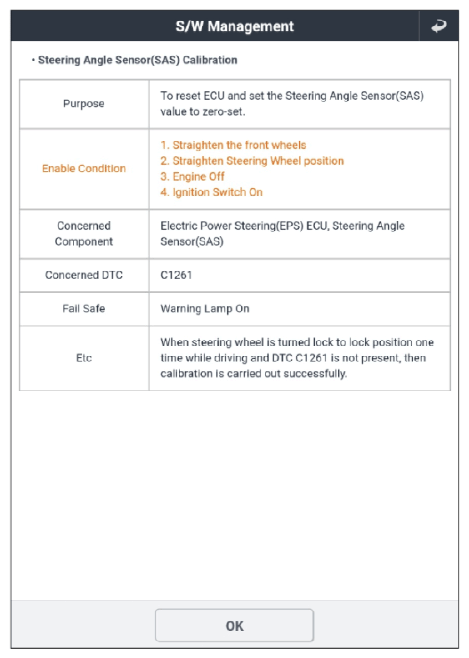

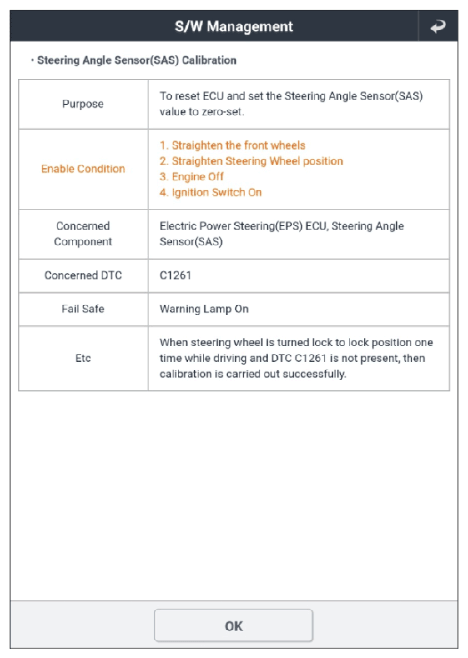

 Fig.1 to 5
G14868079Courtesy of KIA MOTORS AMERICA, INC.
G14868080Courtesy of KIA MOTORS AMERICA, INC.
G14868081Courtesy of KIA MOTORS AMERICA, INC.
G14868082Courtesy of KIA MOTORS AMERICA, INC.
G14868083Courtesy of KIA MOTORS AMERICA, INC.
