Component Location

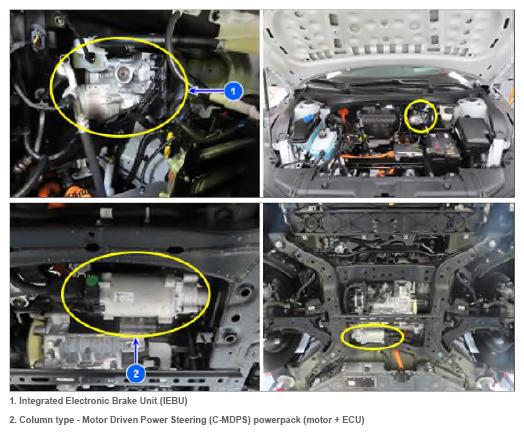

G14868068Courtesy of KIA MOTORS AMERICA, INC.
NOTE: The steering angle sensor is embedded in C-MDPS powerpack
