■ Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

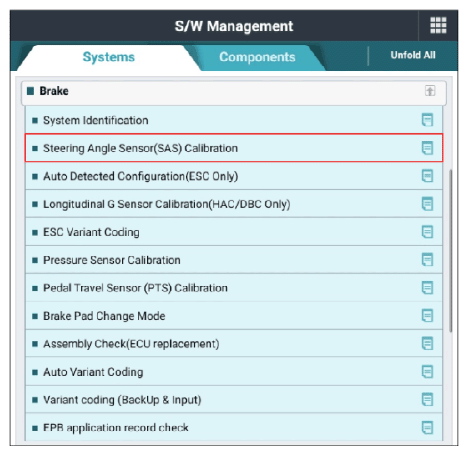

G14867930Courtesy of KIA MOTORS AMERICA, INC.

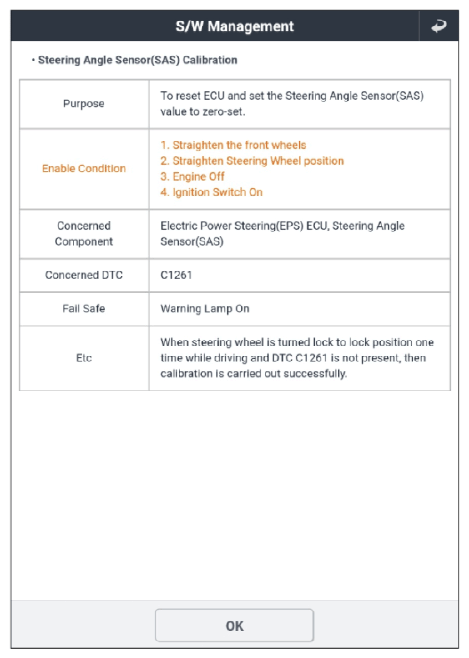

G14867931Courtesy of KIA MOTORS AMERICA, INC.

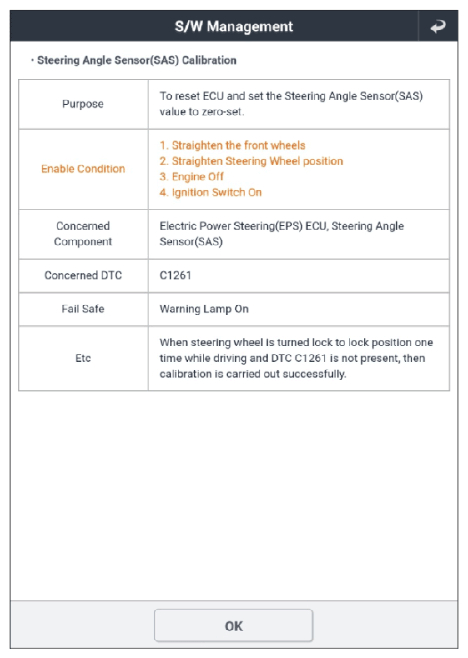

G14867932Courtesy of KIA MOTORS AMERICA, INC.
G14867933Courtesy of KIA MOTORS AMERICA, INC.
G14867934Courtesy of KIA MOTORS AMERICA, INC.
