■ Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

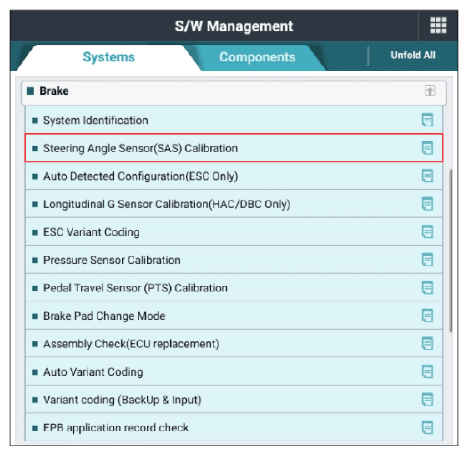

G14867915Courtesy of KIA MOTORS AMERICA, INC.

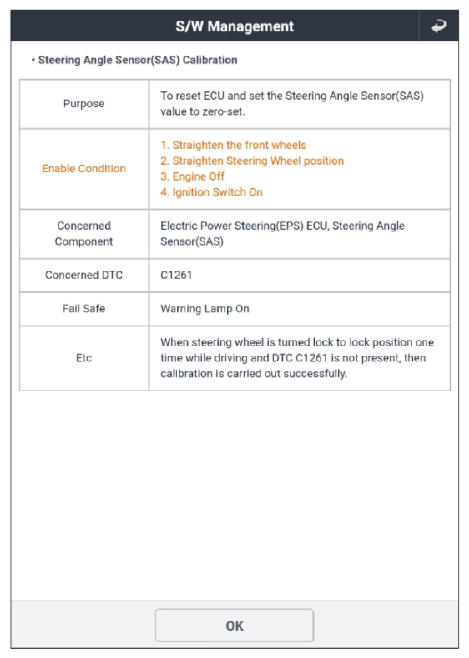

G14867916Courtesy of KIA MOTORS AMERICA, INC.

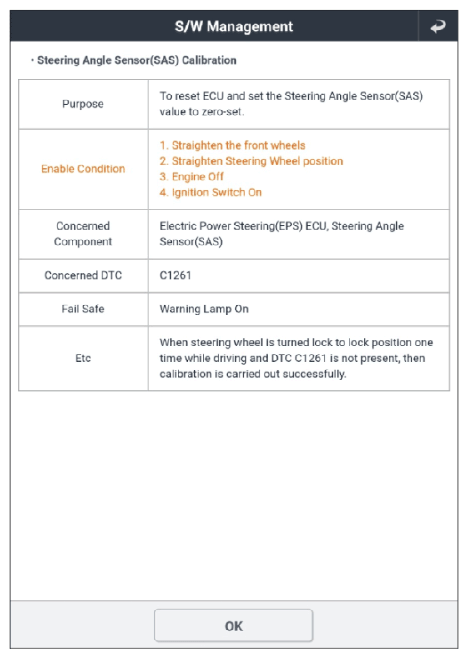

G14867917Courtesy of KIA MOTORS AMERICA, INC.
G14867918Courtesy of KIA MOTORS AMERICA, INC.
G14867919Courtesy of KIA MOTORS AMERICA, INC.
