■ Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

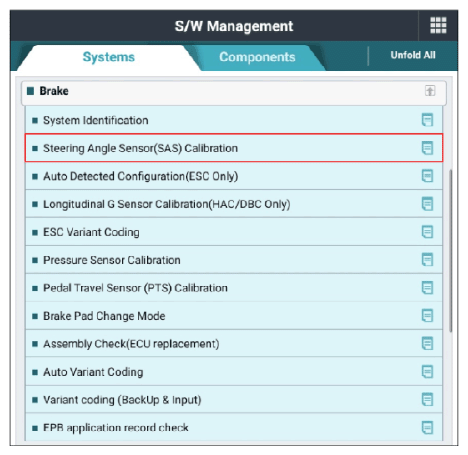

G14867900Courtesy of KIA MOTORS AMERICA, INC.

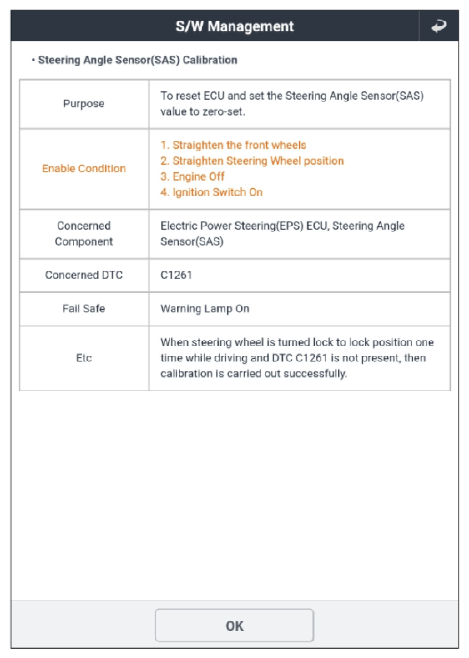

G14867901Courtesy of KIA MOTORS AMERICA, INC.

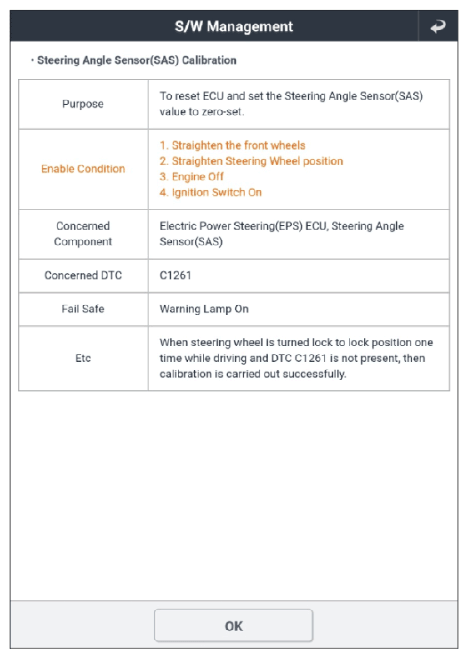

G14867902Courtesy of KIA MOTORS AMERICA, INC.
G14867903Courtesy of KIA MOTORS AMERICA, INC.
G14867904Courtesy of KIA MOTORS AMERICA, INC.
