Removal & Installation: Removal

NOTE:
  • Be careful not to damage trim and panel.
  • When removing it with a remover, wrap a protective tape around it to prevent damage to the parts.
  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the crash pad air vent duct [LH].

    (Refer to Body - "CRASH PAD AIR VENT ")

  3. Remove the crash pad center garnish.

    (Refer to Body - "CRASH PAD GARNISH ")

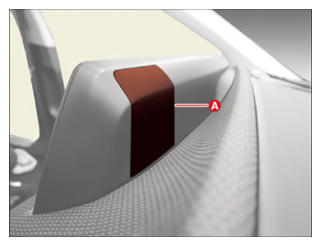

  4. Remove the cluster blanking cover (A).
    G14861620Courtesy of KIA MOTORS AMERICA, INC.

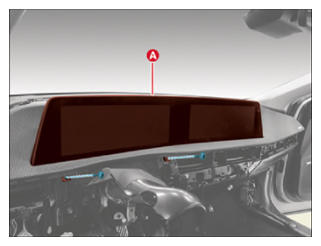

  5. Remove the cluster (A) after removing the screws.
    G14861621Courtesy of KIA MOTORS AMERICA, INC.

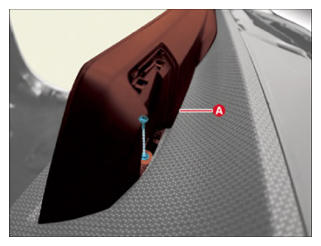

    G14861622Courtesy of KIA MOTORS AMERICA, INC.

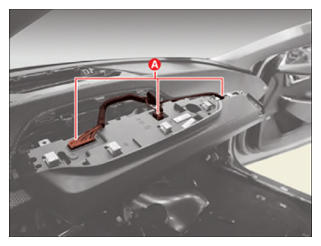

  6. Disconnect the cluster connectors (A).
G14861623Courtesy of KIA MOTORS AMERICA, INC.

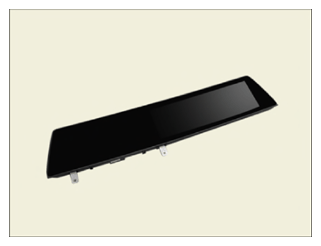

G14861624Courtesy of KIA MOTORS AMERICA, INC.
