Steering Column Shroud Lower Panel

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD PANEL ")

  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

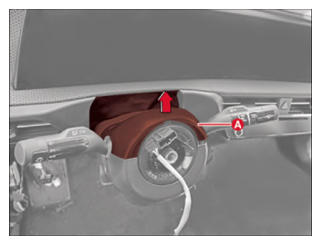

  4. Separate the crash pad garnish [LH] column part (A) in the direction of the arrow by using the remover.
    G14861083Courtesy of KIA MOTORS AMERICA, INC.

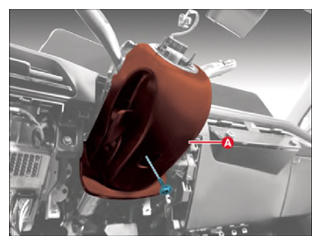

  5. Remove the steering column shroud lower panel (A) after removing the screws.
G14861084Courtesy of KIA MOTORS AMERICA, INC.
G14861085Courtesy of KIA MOTORS AMERICA, INC.
